Gen 3 12V Conversion Box (For Aftermarket Router)

$225.00

6 reviews

Compatible with Starlink Standard 4

Free shipping on orders over $175.
Description

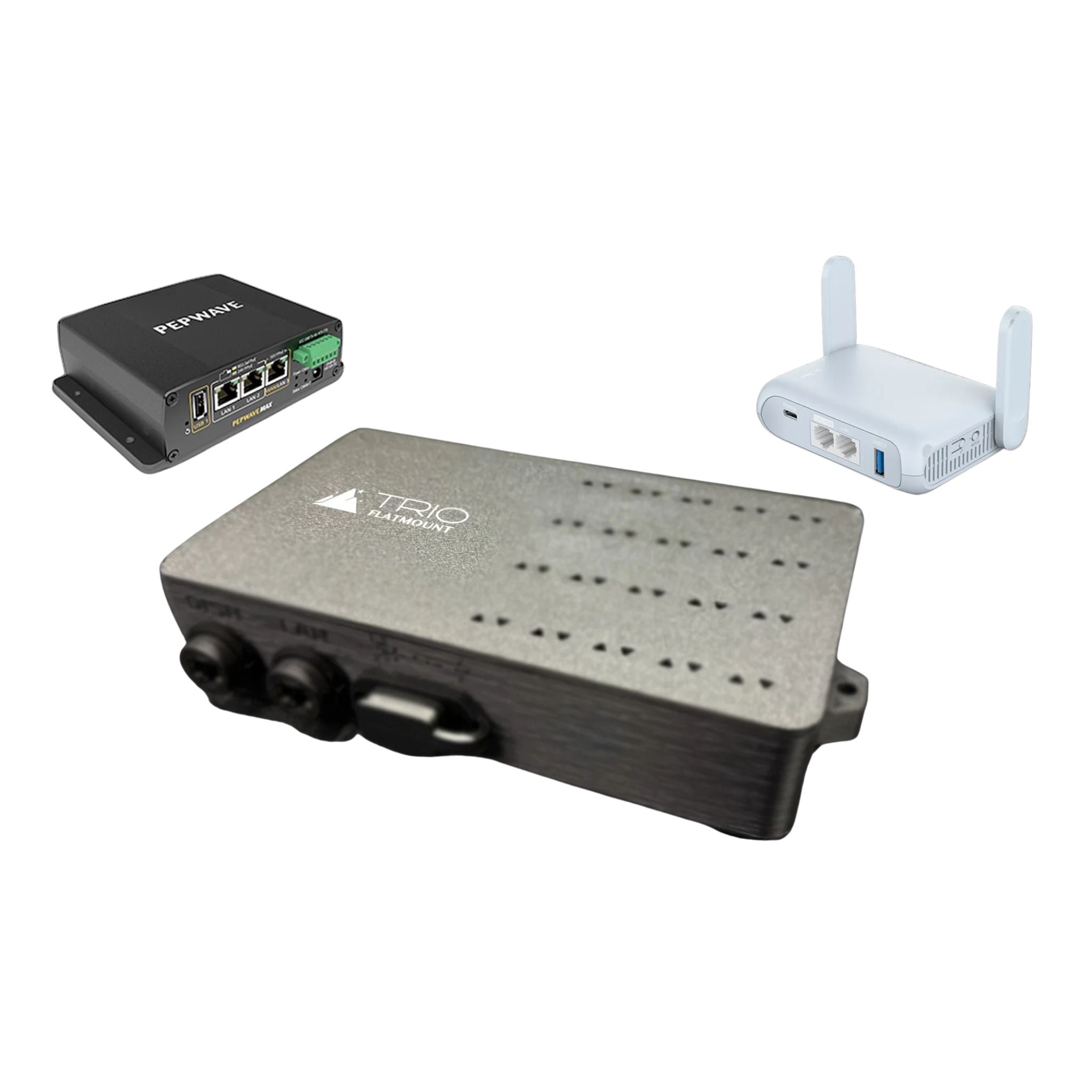

Our Gen 3 12V Conversion Box contains our POE injector and 12V to 56V converter inside, so you can run your Starlink Gen 3 Standard dish straight off a 12V or 24V battery with an aftermarket router like a Peplink (not included). This eliminates the need to run the Gen 3 router alongside your existing router, which cuts power draw by roughly 15W. When you are off-grid, that adds up.

The converter and POE injector are both built in, so the box connects your dish directly to your aftermarket router with none of the extra hardware. The built-in 12V to 56V converter supplies the voltage the Starlink dish needs, and the integrated POE delivers power and data over a single Ethernet line.

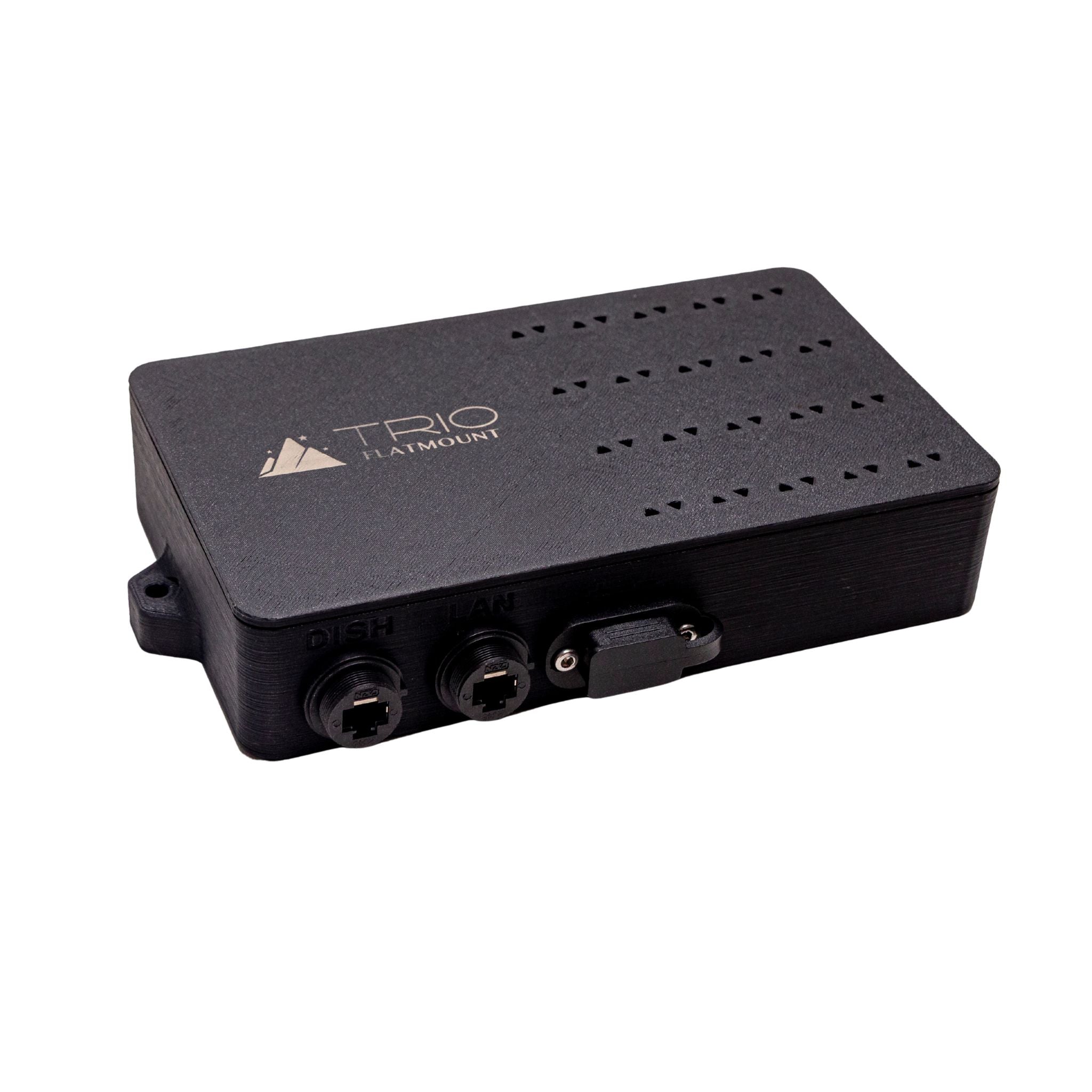

Simply connect the included 5-foot SAE cable to a 12V or 24V power source (DC input range is 10 to 30V) and plug your Gen 3 Starlink Ethernet cable into the port labeled DISH. Compatible with most 12V and 24V battery systems, including lithium, as long as they stay within the 10 to 30V input range.

** Works with snow melt. Our POE has been load tested to over 200W, which is more than enough for Gen 3 snow melt.

Power consumption tested over 1 hour with constant upload/download internet: approximately 40 Wh (roughly 3A at 13.8V). This does not include aftermarket router power consumption, which varies by model.

Please select the appropriate connector for your application from the drop down: bare wire leads or ring terminals. Bare wire is ideal for custom installs. Ring terminals are ideal for direct battery connections.

** We recommend a 15A fuse on your 12V fuse block, or adding an in-line fuse on the positive lead. For 24V installations, use a 10A fuse. We recommend not lengthening the included cable. If you need more length, increase the wire size based on cable length and fuse size.

Important Information

Built specifically for the Starlink Gen 3 Standard (Standard 4) system and designed for use with aftermarket routers such as Peplink. It works with many aftermarket routers that support Starlink integrations. An aftermarket router is required and sold separately. If you plan to use the factory Gen 3 router instead, use the Gen 3 12V Power Supply.

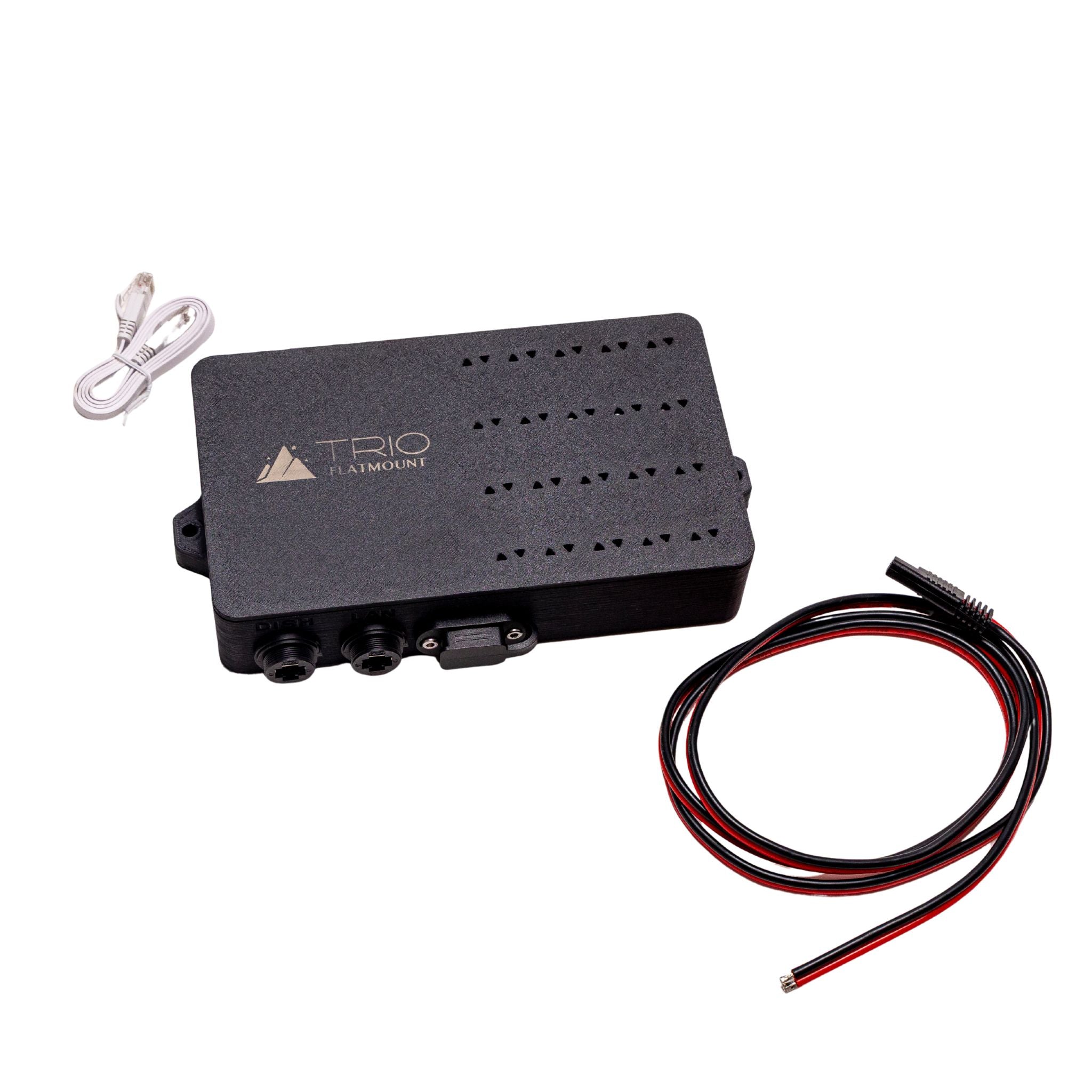

The box includes the integrated POE injector, 12V to 56V converter, and 5-foot SAE power cable. Commonly installed in RVs, camper vans, overland rigs, boats, and off-grid battery systems. Most customers install it themselves, but if you are not comfortable with DC wiring, fuse sizing, or battery connections, we recommend a qualified installer.
Installation

If connecting to a 12V fuse block, please use a 15A fuse (We recommend not lengthening the included 12V power supply cable length, but if needing to please size appropriately based on cable length and fuse size. Seek professional electrical assistance if required).

If connecting to a 24V fuse block, please use a 10A fuse
Important Information

⚠ Given the varying conditions and applications that this can be installed in, it is ultimately up to the end user to make sure the power supply is safely and appropriately connected to 12V or 24V power. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.
Warranty

See our warranty here: Warranty
View details
Gen 3 12V Conversion Box (For Aftermarket Router)

TRIO Lifetime Guarantee

Learn More

Frequently Asked Questions

What does the Gen 3 12V Conversion Box do?

The Gen 3 12V Conversion Box powers your Starlink Gen 3 Standard directly from a 12V or 24V battery system while using an aftermarket router such as a Peplink.
Why would I use the Gen 3 12V Conversion Box instead of the Gen 3 router?

The Gen 3 12V Conversion Box removes the need to run the Starlink Gen 3 router alongside your aftermarket router, cutting overall power consumption by approximately 15W.
What Starlink systems is the Gen 3 12V Conversion Box compatible with?

The Gen 3 12V Conversion Box is designed specifically for the Starlink Gen 3 Standard system.
Does the Gen 3 12V Conversion Box include a router?

No. An aftermarket router, such as a Peplink, is required and is not included.
Can I use the Gen 3 12V Conversion Box with a Peplink router?

Yes. The Gen 3 12V Conversion Box was designed for use with aftermarket routers such as Peplink.
Can I use the Gen 3 12V Conversion Box with other aftermarket routers?

Yes. The Gen 3 12V Conversion Box is compatible with many aftermarket routers that support Starlink integrations.
Does the Gen 3 12V Conversion Box eliminate the need for the Starlink Gen 3 router?

Yes. The Gen 3 12V Conversion Box connects the Starlink dish directly to your aftermarket router without using the Gen 3 router.
How much power does the Gen 3 12V Conversion Box save compared to using the Gen 3 router?

Removing the Gen 3 router typically reduces power consumption by approximately 15W, but it depends on what router you’re using.
What input voltage does the Gen 3 12V Conversion Box accept?

The Gen 3 12V Conversion Box accepts 10V to 30V DC input. This makes it compatible with most 12V and 24V battery systems.
Does the Gen 3 12V Conversion Box include a voltage converter?

Yes. The Gen 3 12V Conversion Box contains a built-in 12V to 56V converter required to power the Starlink dish.
Does the Gen 3 12V Conversion Box include a POE injector?

Yes. The POE injector is built into the Gen 3 12V Conversion Box.
What does POE mean?

POE stands for Power over Ethernet. It delivers both power and data through a single Ethernet connection to the Starlink dish.
Can I use snow melt with the Gen 3 12V Conversion Box?

Yes. The POE system is load tested to over 200W, which is more than enough to support the Gen 3 snow melt function.
How much power does the system use?

Testing showed approximately 40Wh over one hour during constant upload and download, or roughly 3A at 13.8V. This does not include your aftermarket router's power consumption.
Does aftermarket router power consumption affect these numbers?

Yes. The published figures cover only the Starlink dish and the Gen 3 12V Conversion Box. Actual usage varies with the router you choose.
What connection types are available?

The Gen 3 12V Conversion Box is available with:

  • Bare wire leads
  • Ring terminals
Which connection type should I choose?
  • Bare wire leads: ideal for custom installations
  • Ring terminals: ideal for direct battery connections
What cable is included?

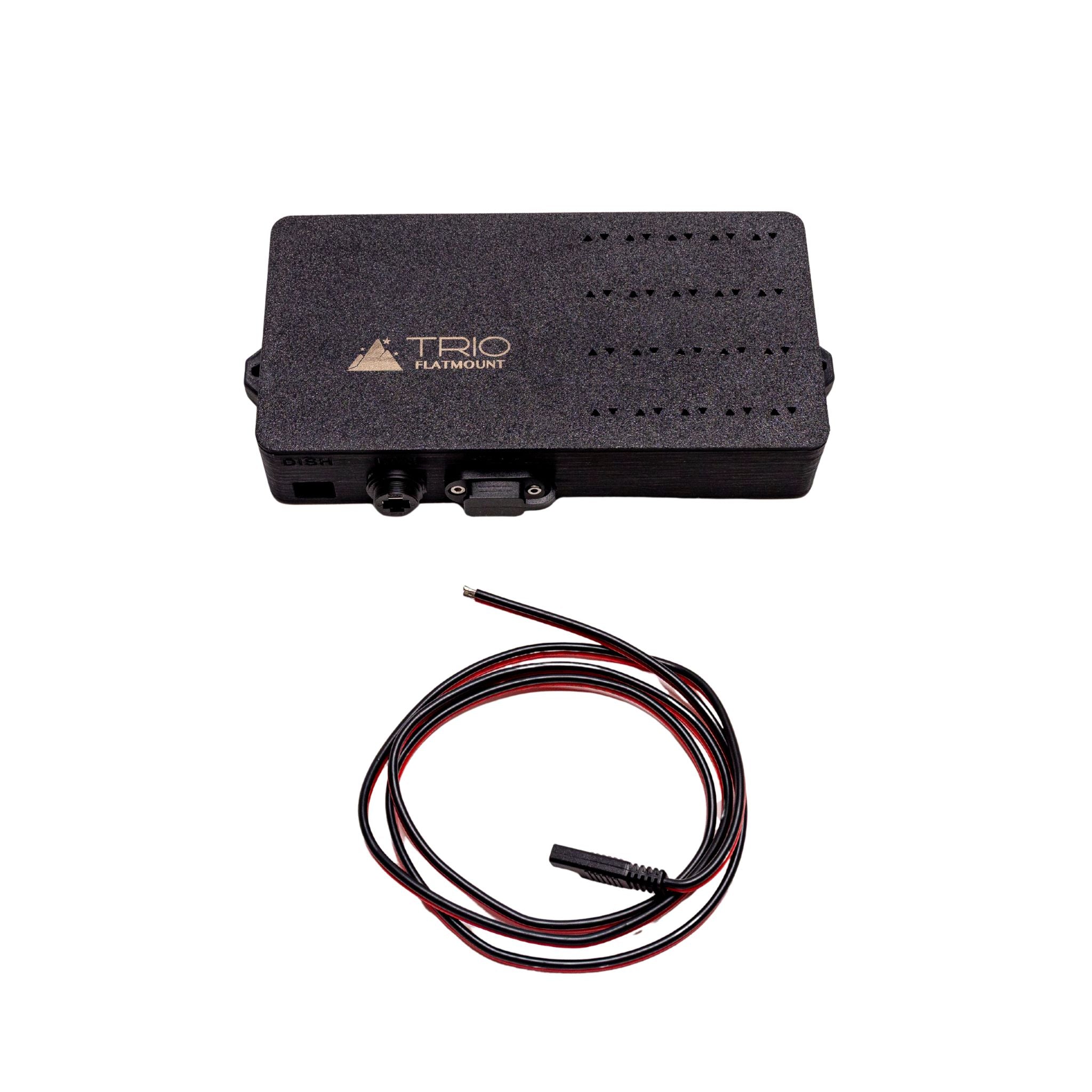

The Gen 3 12V Conversion Box includes a 5-foot SAE power cable.
How do I connect the Starlink dish?

Connect the included SAE cable to a compatible power source. Plug the Starlink Ethernet cable into the port labeled DISH.
What fuse size should I use for a 12V installation?

Use a 15A fuse when connecting to a 12V fuse block, or install an inline fuse on the positive lead.
What fuse size should I use for a 24V installation?

For 24V installations, use a 10A fuse.
Can I extend the power cable?

We recommend not lengthening the included power cable. If you need more length, increase the wire size based on cable length and fuse size.
Can I install the Gen 3 12V Conversion Box in an RV, van, boat, or off-grid system?

Yes. The Gen 3 12V Conversion Box is commonly used in RVs, camper vans, overland rigs, marine applications, and off-grid battery systems.
Can I use the Gen 3 12V Conversion Box with a 12V battery?

Yes. The Gen 3 12V Conversion Box runs from both 12V and 24V battery systems.
Can I use the Gen 3 12V Conversion Box with a lithium battery system?

Yes, as long as the battery system operates within the supported 10V to 30V input range.
Do I need professional installation?

Most customers install the Gen 3 12V Conversion Box themselves. If you are unfamiliar with DC electrical systems, fuse sizing, or battery wiring, we recommend consulting a qualified installer.
Does the Gen 3 12V Conversion Box come with everything needed to power the Starlink dish?

The Gen 3 12V Conversion Box includes the integrated POE injector, 12V to 56V converter, and SAE power cable. An aftermarket router is required and sold separately.
