High Performance 12V Conversion Box (For Aftermarket Router)

$400.00

6 reviews

Compatible with Starlink Performance Gen 2

Free shipping on orders over $175.
Description

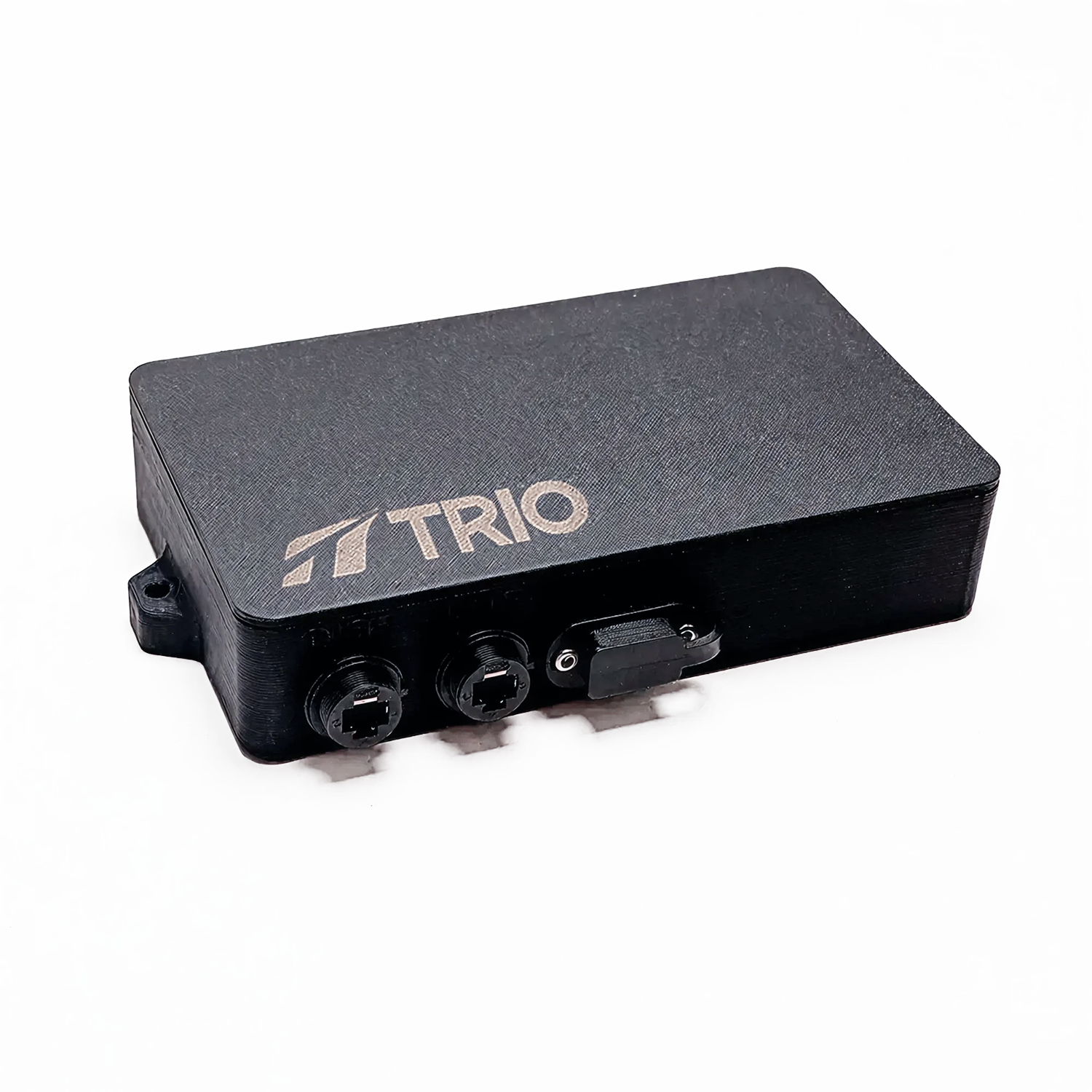

Our HP 12V Conversion Box contains our POE injector and 12V to 56V converter inside, so you can run your Starlink High Performance dish straight off a 12V or 24V battery with an aftermarket router like a Peplink or GliNet (not included). This eliminates the need to run the HP router alongside your existing router, which cuts power consumption by roughly 10%, not including the inverter inefficiencies you also avoid.

The converter and POE injector are both built in, so the box connects your dish directly to your aftermarket router with no extra hardware. The built-in 12V to 56V converter supplies the voltage the Starlink dish needs, and the integrated POE delivers power and data over a single Ethernet line.

Simply connect the included 5-foot SAE cable to a 12V or 24V power source (DC input range is 10 to 30V) and plug your High Performance dish's Starlink Ethernet cable into the port labeled DISH. No cable cutting or crimping required. Compatible with most 12V and 24V battery systems, including lithium, as long as they stay within the 10 to 30V input range.

** Works with snow melt. Our POE and converter are rated for 320W, which is more than enough for Gen 3 snow melt.

Power consumption tested over 1 hour with constant upload/download internet: approximately 83 Wh (6A at 13.8V). This does not include aftermarket router power consumption, which varies by model.

Please select the appropriate connector for your application from the drop down: bare wire leads or ring terminals. Bare wire is ideal for custom installs. Ring terminals are ideal for direct battery connections.

** We recommend a 30A fuse on your 12V fuse block, or adding an in-line fuse on the positive lead sized to the included wiring. For 24V installations, use a 10A fuse. We recommend not lengthening the included cable. If you need more length, increase the wire size based on cable length and fuse size.

Important Information

Built specifically for the Starlink High Performance dish and designed for use with aftermarket routers such as Peplink and GliNet. It works with many aftermarket routers that support Starlink integrations. An aftermarket router is required and sold separately, though a GliNet AX3000 WiFi 6 router can be added at checkout.

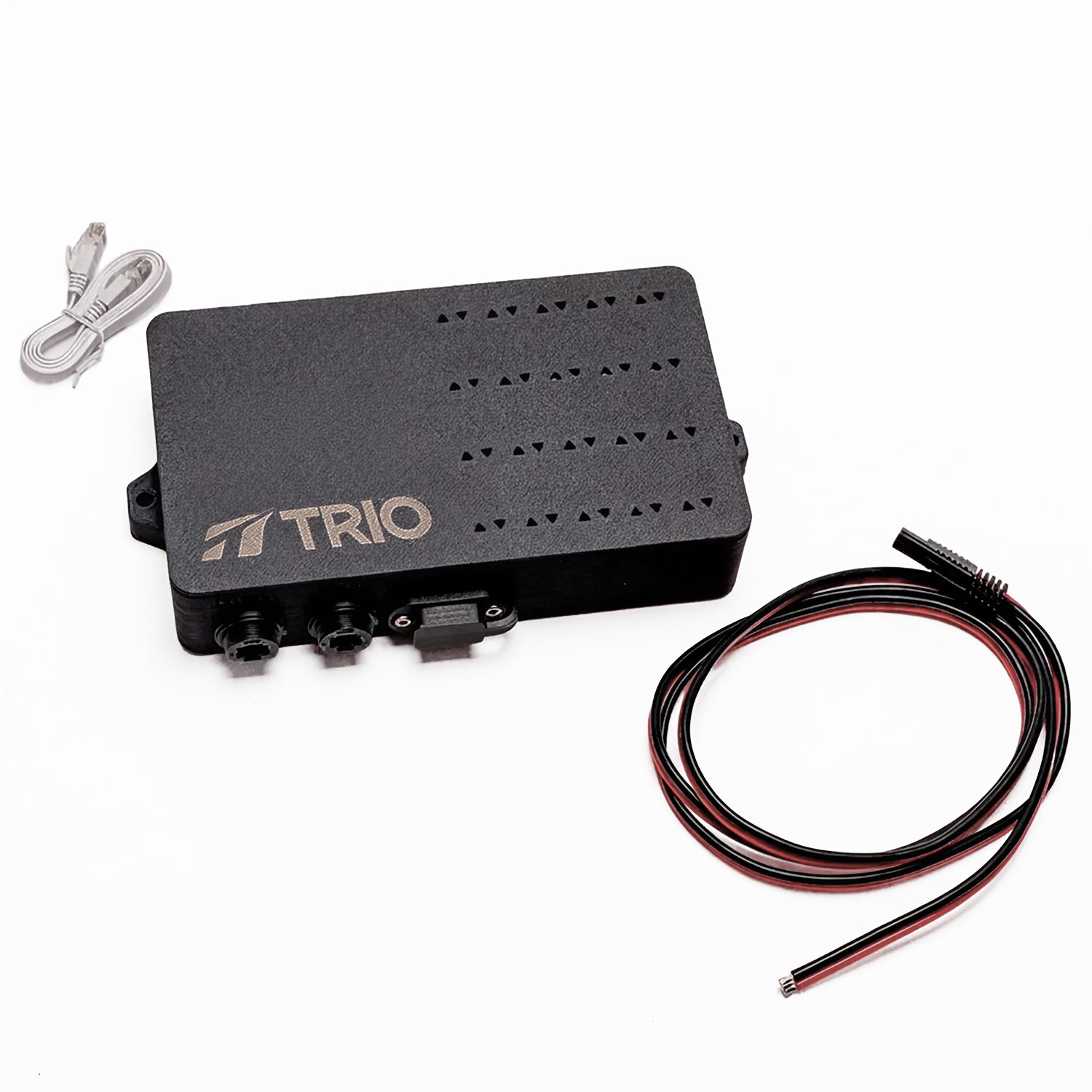

The box includes the integrated POE injector, 12V to 56V converter, and 5-foot SAE power cable. Commonly installed in RVs, camper vans, overland rigs, boats, and off-grid battery systems. Most customers install it themselves, but if you are not comfortable with DC wiring, fuse sizing, or battery connections, we recommend a qualified installer.
Installation

If connecting to a 12V fuse block, please use a 15A fuse (We recommend not lengthening the included 12V power supply cable length, but if needing to please size appropriately based on cable length and fuse size. Seek professional electrical assistance if required).

If connecting to a 24V fuse block, please use a 10A fuse
Important Information

⚠ Given the varying conditions and applications that this can be installed in, it is ultimately up to the end user to make sure the power supply is safely and appropriately connected to 12V or 24V power. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.
Warranty

See our warranty here: Warranty
View details
TRIO Lifetime Guarantee

The Guarantee

Peace of Mind, Everywhere

  • Lifetime Coverage

    Every TRIO mount in our lineup is backed for life.

  • Industry-First Coverage

    No other Starlink mount brand backs their product like this.

  • Direct Purchase Only

    Covers all purchases directly from trioflatmount.com.

Frequently Asked Questions

What does the High Performance 12V Conversion Box do?

The High Performance 12V Conversion Box allows you to power a Starlink High Performance Dish directly from a 12V or 24V battery system while using an aftermarket router such as a Peplink or GL.iNet router.
Why would I use this instead of the High Performance router?

This setup eliminates the need to run the Starlink High Performance router alongside your aftermarket router, resulting in approximately 10% power savings, not including inverter inefficiencies.
What Starlink systems is this compatible with?

This conversion box is designed specifically for the Starlink High Performance Dish AKA Performance Gen 2.
Does this include a router?

No. An aftermarket router is required and is not included unless selected from the product options.
Can I add a router when purchasing?

Yes. You can select the optional aftermarket WiFi 6 router from the dropdown menu before adding the product to your cart.
What router is included if I select the WiFi 6 router option?

The included router is a GL.iNet AX3000 WiFi 6 router along with a 12V/24V to 5V USB-C adapter, pre-configured to work with the conversion box.
Can I use my own router?

Yes. The conversion box is designed to work with aftermarket routers such as Peplink, GL.iNet, and similar networking solutions.
Does this eliminate the need for the Starlink High Performance router?

Yes. The conversion box allows you to connect the High Performance Dish directly to your aftermarket router without using the Starlink router.
How much power can I save by eliminating the Starlink router?

Most customers see approximately 10% power savings, not including any additional savings from eliminating inverter losses.
What input voltage does the conversion box accept?

The conversion box accepts 10V-30V DC input. This makes it compatible with most 12V and 24V battery systems.
Does this include a voltage converter?

Yes. The conversion box contains a built-in 12V-56V converter required to power the High Performance Dish.
Does this include a POE injector?

Yes. The POE injector is built directly into the conversion box.
What does POE mean?

POE stands for Power over Ethernet. It allows both power and data to be delivered through a single Ethernet cable.
Can I use snow melt with this setup?

Yes. The POE injector and converter are rated for 320W, which is more than enough to support the High Performance Dish snow melt function.
How much power does the system use?

Testing showed approximately 83Wh over one hour during constant upload and download activity, or roughly 6A at 13.8V.

This does not include the power consumption of your aftermarket router.
Does aftermarket router power consumption affect these numbers?

Yes. Actual power consumption will vary depending on the router being used.
What connection types are available?

The conversion box is available with:

  • Bare wire leads
  • Ring terminals
Which connection type should I choose?
  • Bare wire leads: ideal for custom installations
  • Ring terminals: ideal for direct battery connections
What cable is included?

The conversion box includes a 5-foot SAE power cable.
How do I connect the High Performance Dish?

Simply connect the included SAE cable to a compatible 12V or 24V power source and plug the Starlink Ethernet cable from the dish into the port labeled "DISH."

No cable cutting or crimping is required.
Do I need to cut or modify my Starlink cables?

No. The system is designed to be plug-and-play and does not require cutting, crimping, or modifying any Starlink cables.
What fuse size should I use?

We recommend using a 30A fuse when connecting to a 12V fuse block or installing an inline fuse on the positive lead.

For 24V installations, use a 10A fuse.
Can I extend the power cable?

We recommend not lengthening the included power cable.

If additional length is required, the wire size should be increased appropriately based on cable length and fuse size.
Can I install this in an RV, van, boat, or off-grid system?

Yes. The conversion box is commonly used in RVs, camper vans, overlanding vehicles, marine applications, and off-grid battery systems.
Can I use this with a 12V battery?

Yes. The conversion box is designed to operate from both 12V and 24V battery systems.
Can I use this with a lithium battery system?

Yes. As long as the battery system operates within the supported 10V-30V input range.
Do I need professional installation?

Most customers can install the conversion box themselves.

However, if you're unfamiliar with DC electrical systems, fuse sizing, or battery wiring, we recommend consulting a qualified installer.
Does this come with everything needed to power the High Performance Dish?

The conversion box includes the integrated POE injector, 12V-56V converter, and SAE power cable.

An aftermarket router is required unless the optional WiFi 6 router is selected during purchase.
