Ultimate Connectivity Kit - Mini Flatmount

4% off

Ultimate Connectivity Kit - Mini Flatmount

Name: Ultimate Connectivity Kit - Mini Flatmount
Brand: Trio Flatmount
SKU: ULTIMATE-FLM-MINI-WHT
Price: 445.00 USD
Availability: InStock

$445.00 $465.00

Compatible with Starlink Mini

Free shipping on orders over $175.

Color: White

Product variants

Description

For customers who want maximum versatility and a truly complete setup, the Ultimate Connectivity Kit for the Mini Flatmount includes every mounting attachment option along with the Mini 12V DC Power Cable. Built for those who want to be prepared for any situation and any surface, whether temporary or permanent, on the road or at camp.

You receive all of our premium attachment styles: Rubber-Coated Magnets, VHB Adhesive Landing Pads, VHB Adhesive-Backed Magnet Mounting Discs, Standard Suction Cups, Swivel Leg Mount Adapters, and the through-bolt stainless steel hardware option. Switch between configurations instantly and mount your Starlink Mini on steel roofs, aluminum surfaces, fiberglass, rubber roofing, glass, racks, or interior panels.

Whether you prefer magnetic mounting for quick deployment, VHB for a clean low-profile install, suction cups for temporary mounting, or a permanent bolt-through install, this kit gives you everything needed to stay connected in any environment.

TRIO-Grade Features:

Safety tested up to 120 mph
No drill
Snowmelt protection
Heat-transfer optimization
Signal performance prioritization

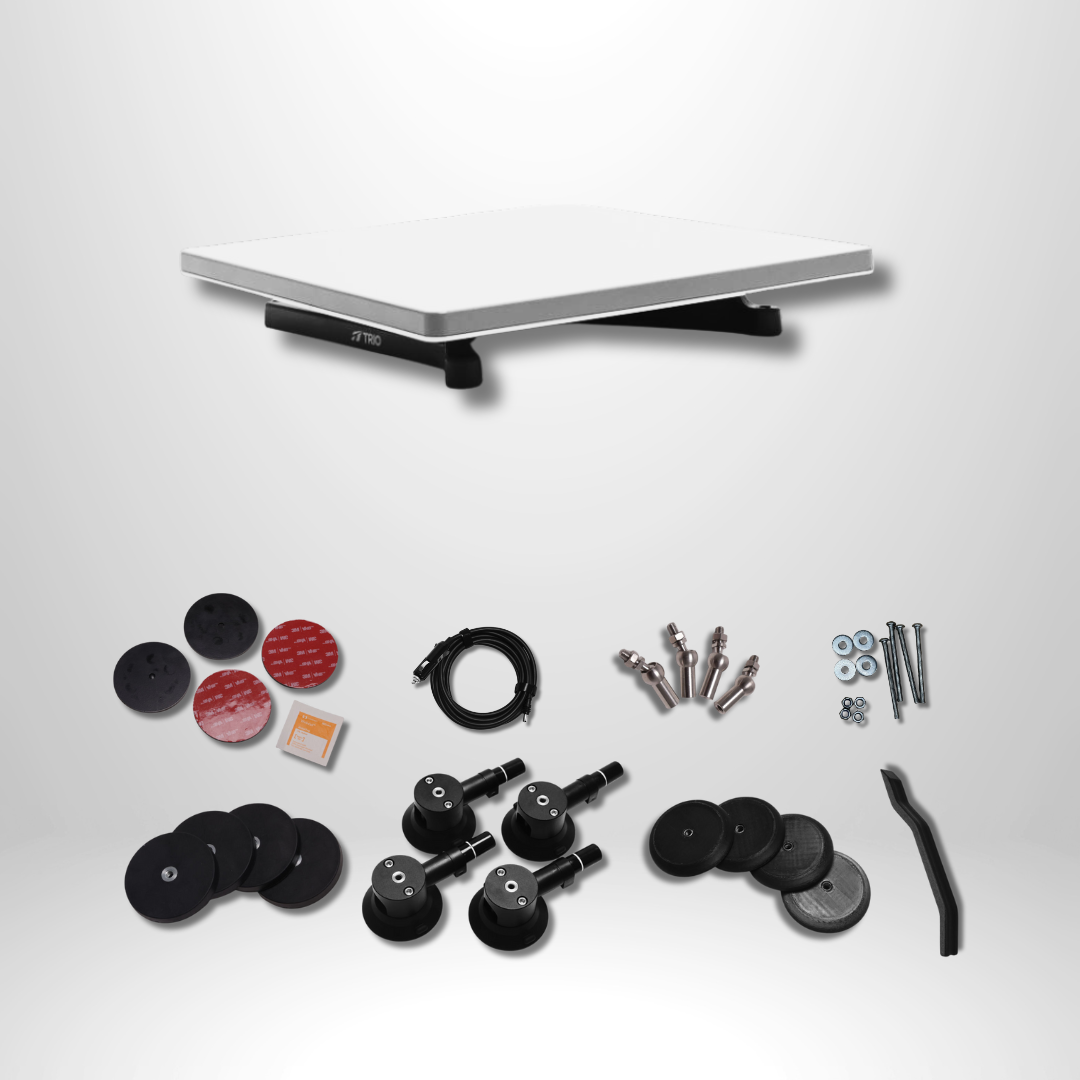

What’s Included

Mini Flatmount

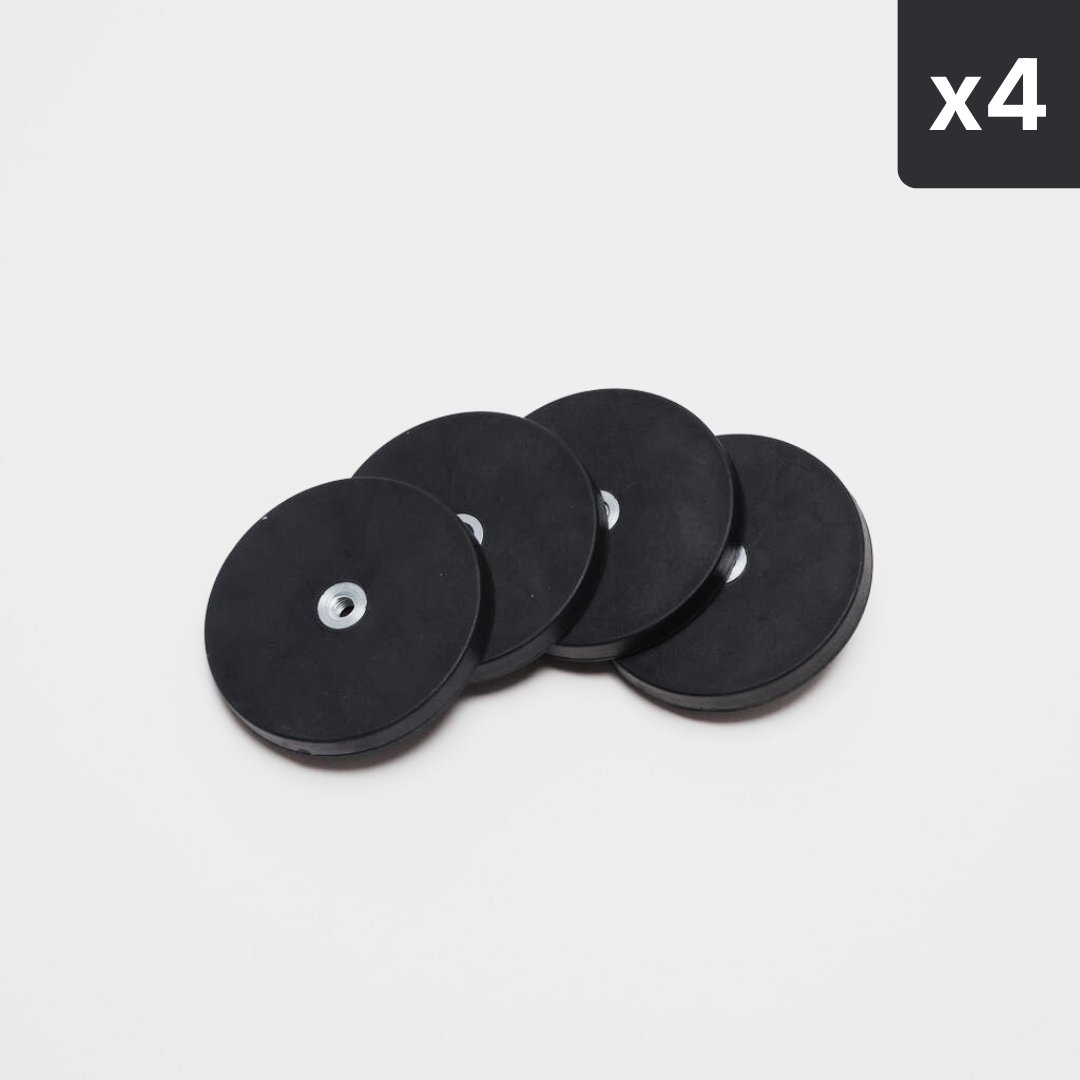

Rubber-Coated Magnets
Through-bolt stainless steel hardware (40 mm)
VHB Adhesive Landing Pads
Standard Suction Cups

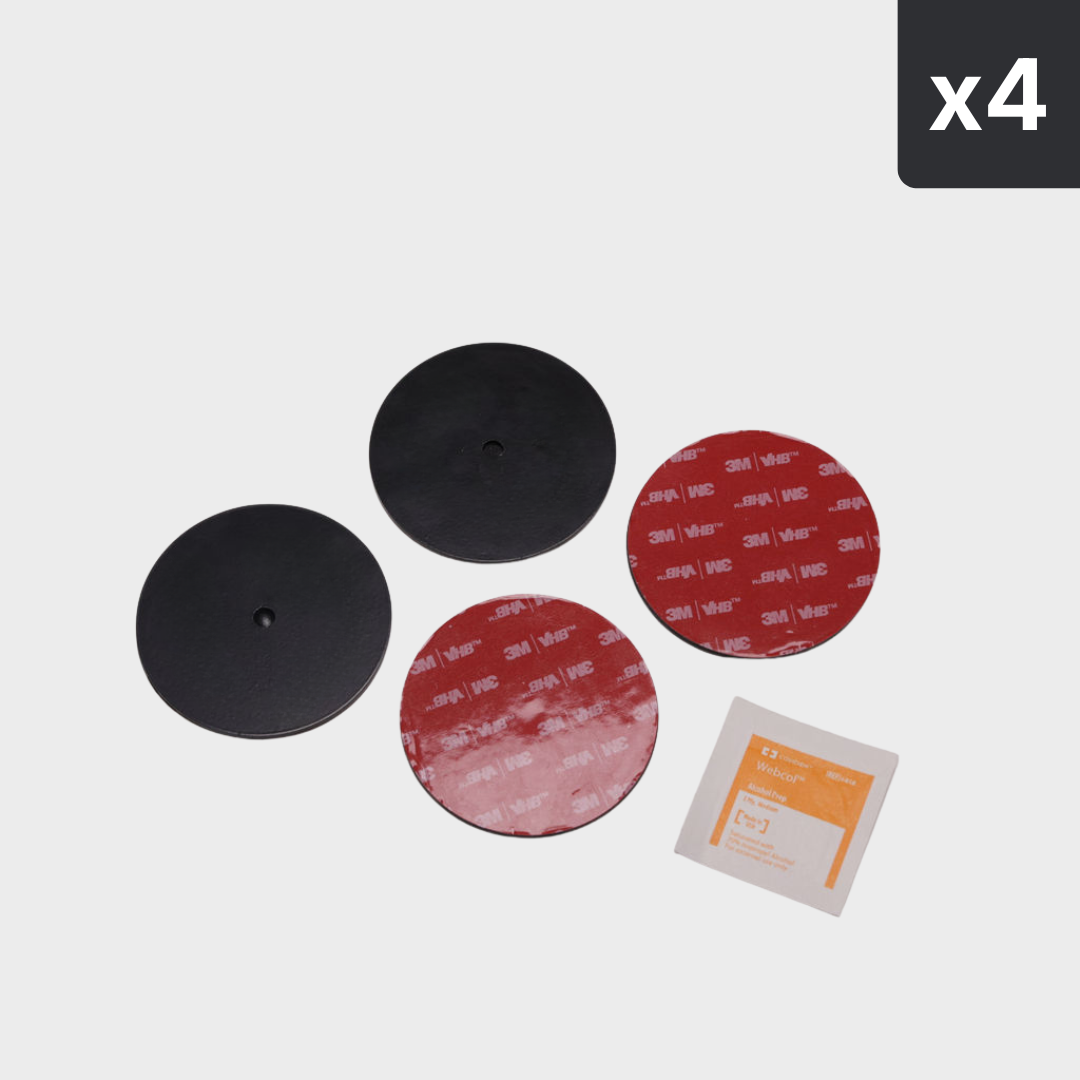

VHB Adhesive-Backed Magnet Mounting Discs

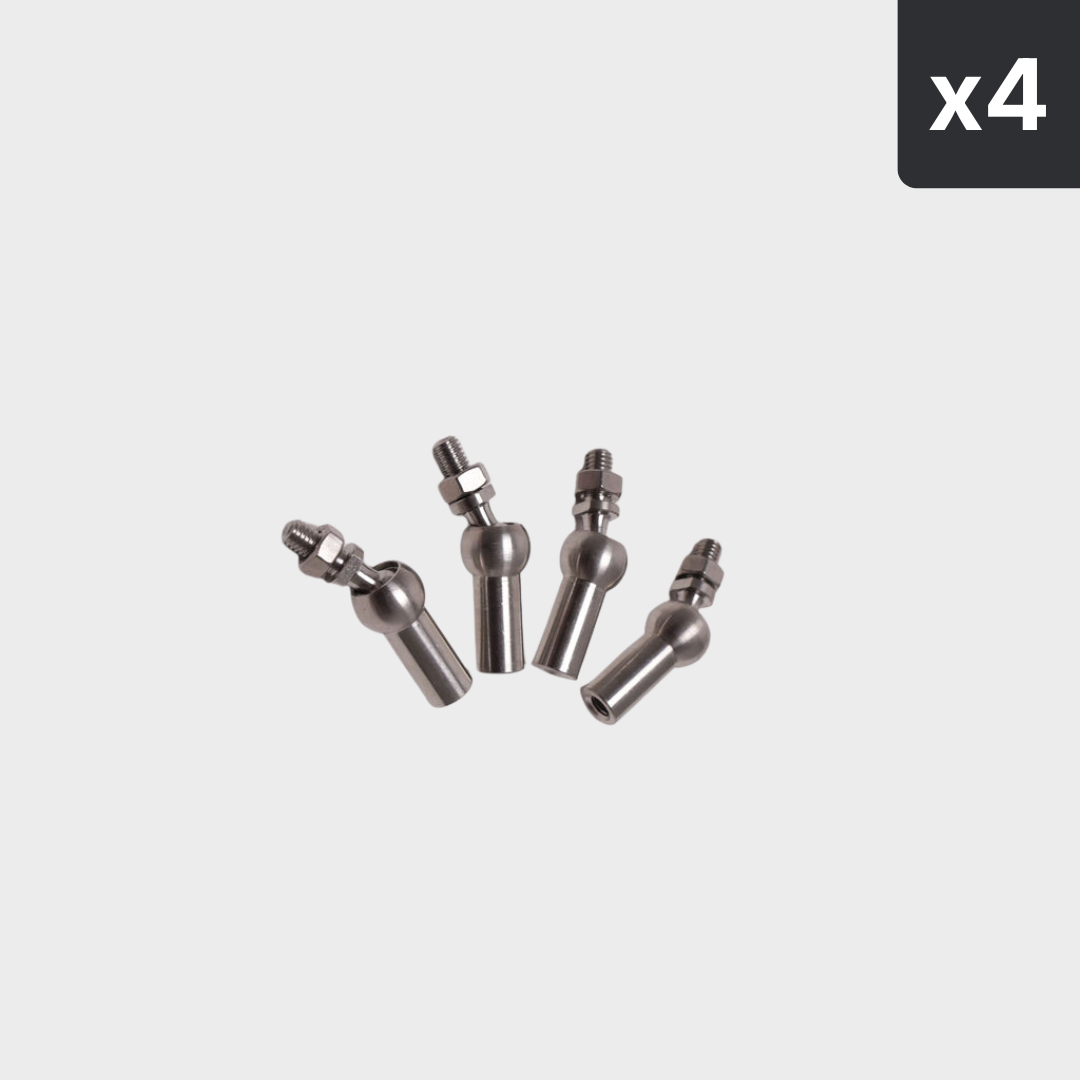

Swivel Leg Mount Adapters
Release Lever
Mini 12V DC Power Cable, 10 ft, with a standard 12V cigarette lighter plug

Installation

See installation instructions here: Installation Instructions

Specifications

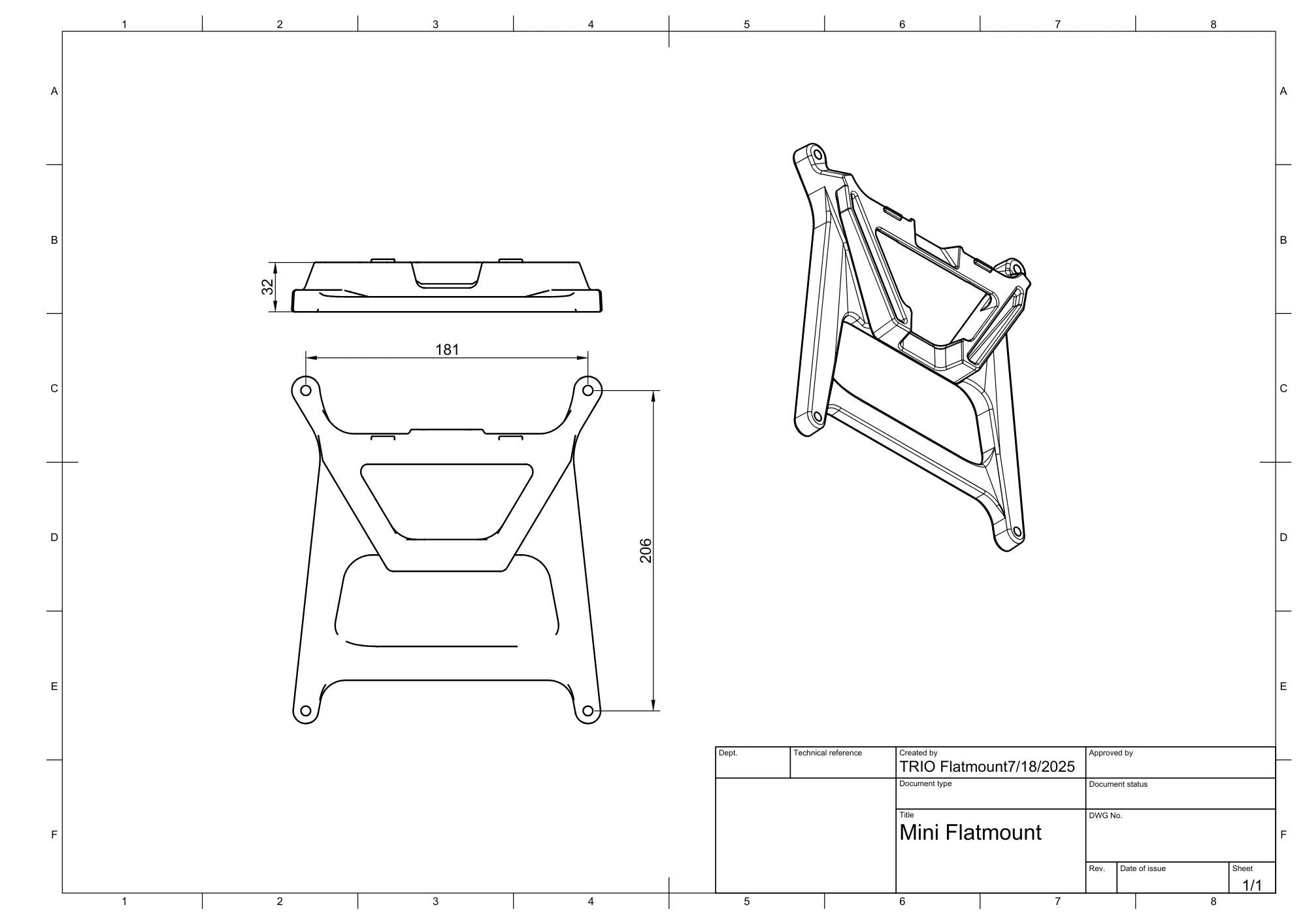

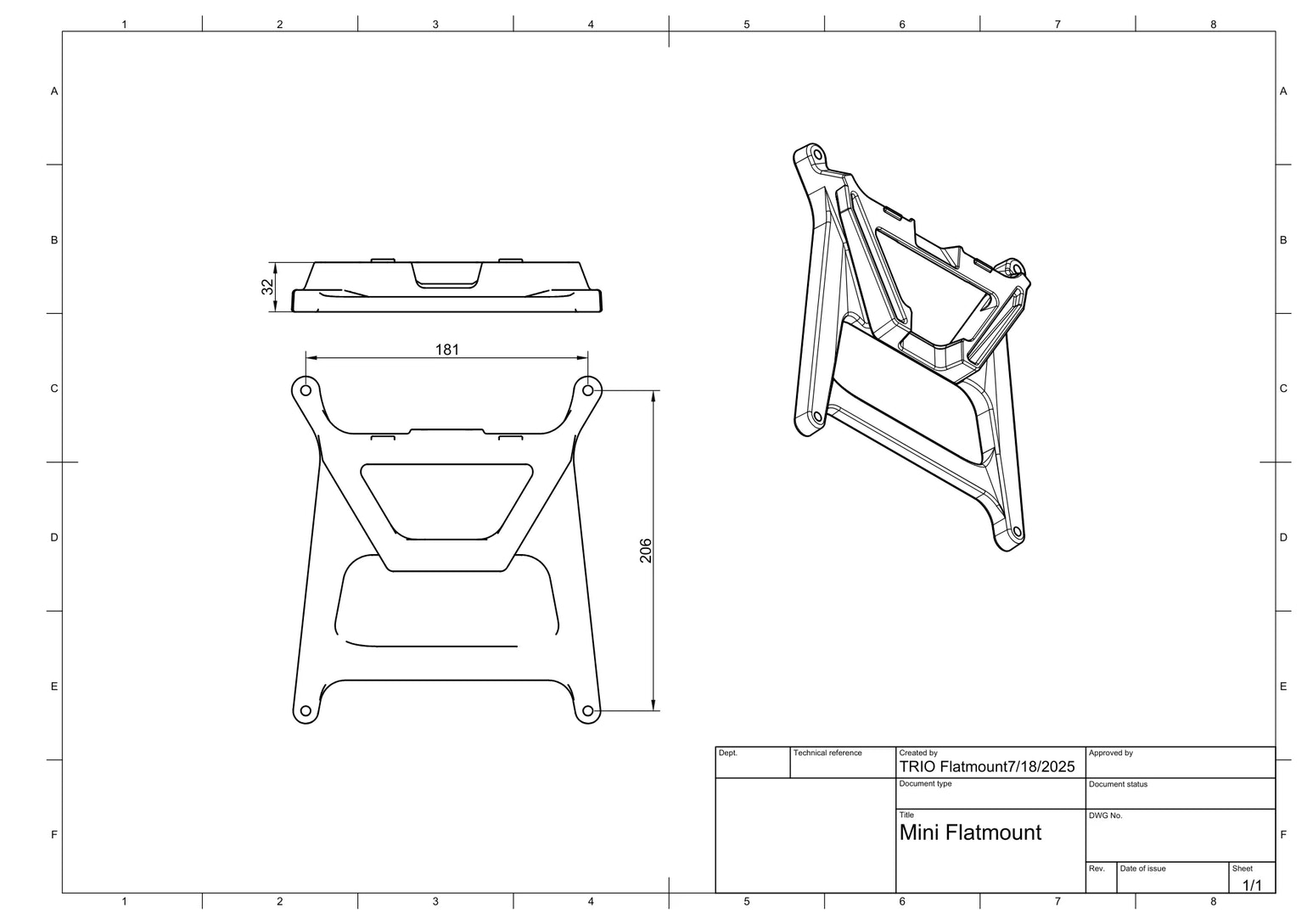

Assembled Dimensions:
Height: 2.0” (2.5” with magnets)
Weight: ~0.9 lbs (408 g)

Mounting Options:
Rubber-Coated Magnets, VHB Landing Pads, Suction Cups, Through-Bolting Kits, or combination setups

Compatibility:
Starlink Mini (UTA-231 and all sub-versions)

Operating Temperature:
-40°F to 150°F (-40°C to 65°C)

Material:
UV-Resistant ASA Injection Molded Plastic

Mounting Heights:
Rubber-Coated Magnets (inner): 2.0” (53 mm)
Magnet with VHB Disc: 2.13” (55 mm)
Heavy-Duty Suction Cup: 3.75” (95 mm)
Through-Bolting: 1.75” (45 mm)

Important Information

⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

TRIO Lifetime Guarantee

Read more about the TRIO Lifetime Guarantee.

Non-Flat or Ridged Roof? Read This Before Mounting

If your vehicle's roof has raised ridges or contours, any attachment may not achieve full contact with the roof surface, and full contact is required for a secure hold. Without it, the mount can detach at highway speeds. If your roof has ridges, we recommend:
