Mini Flatmount

$100.00

19 reviews

Compatible with Starlink Mini

Free shipping on orders over $175.

Color: White
Complete your set up.
Description

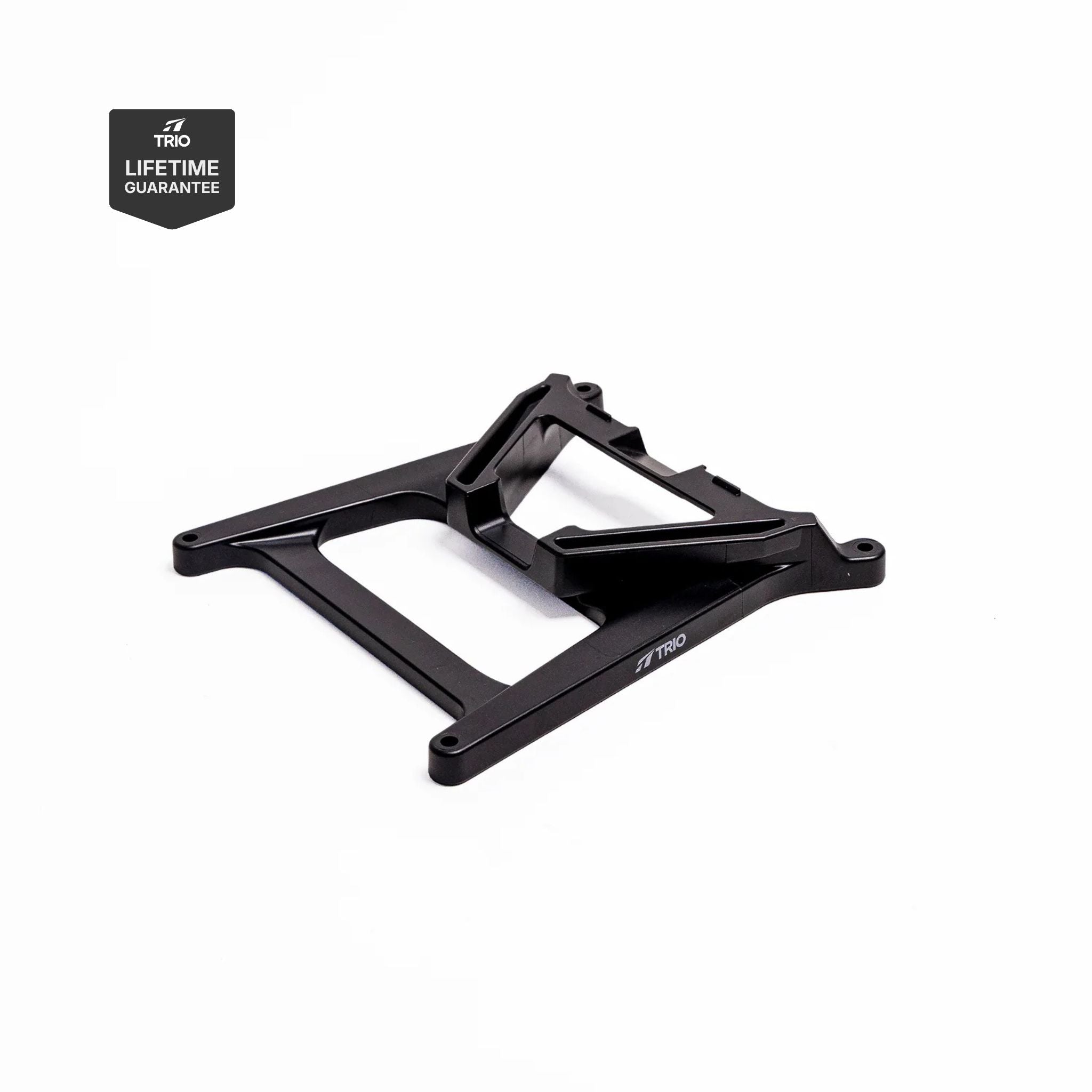

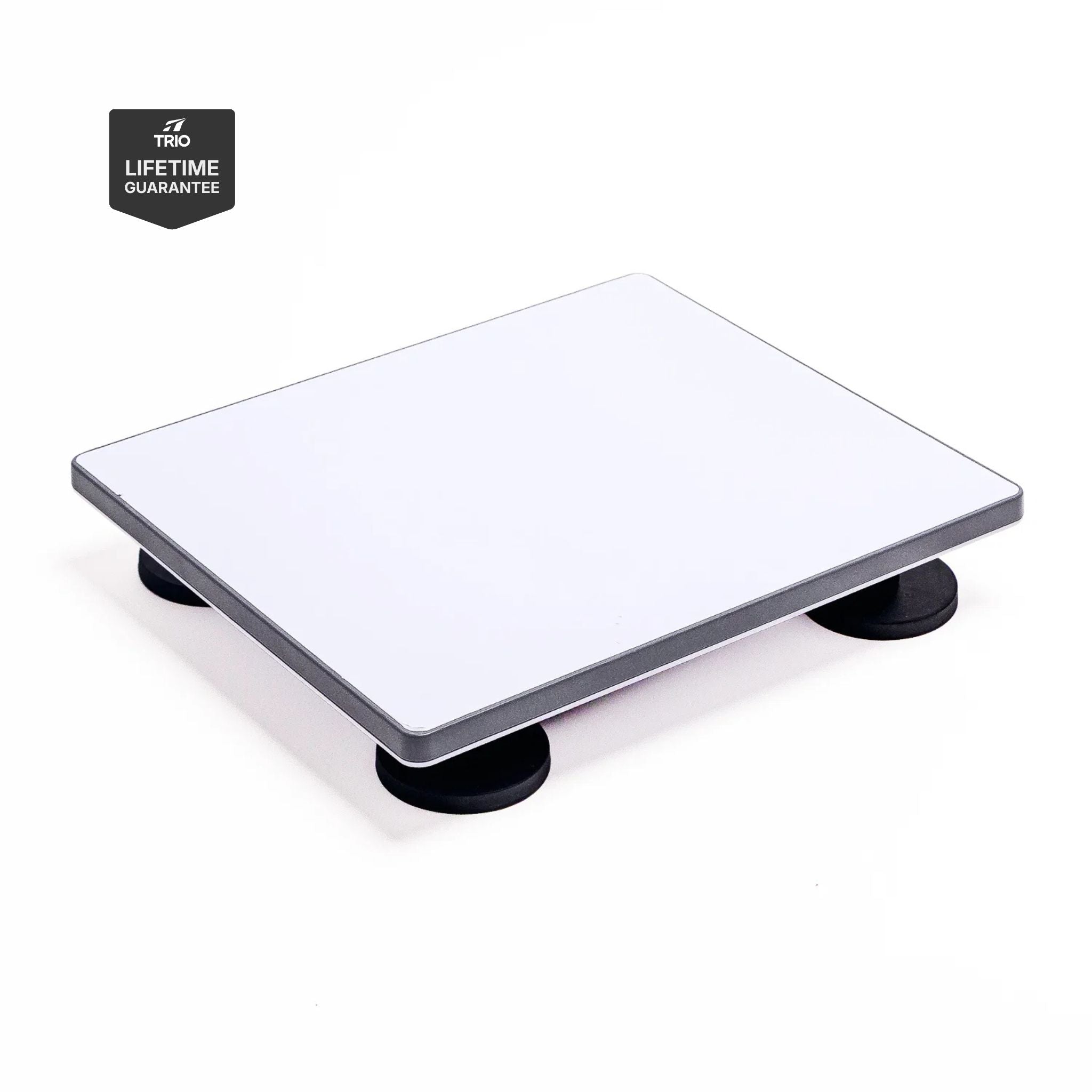

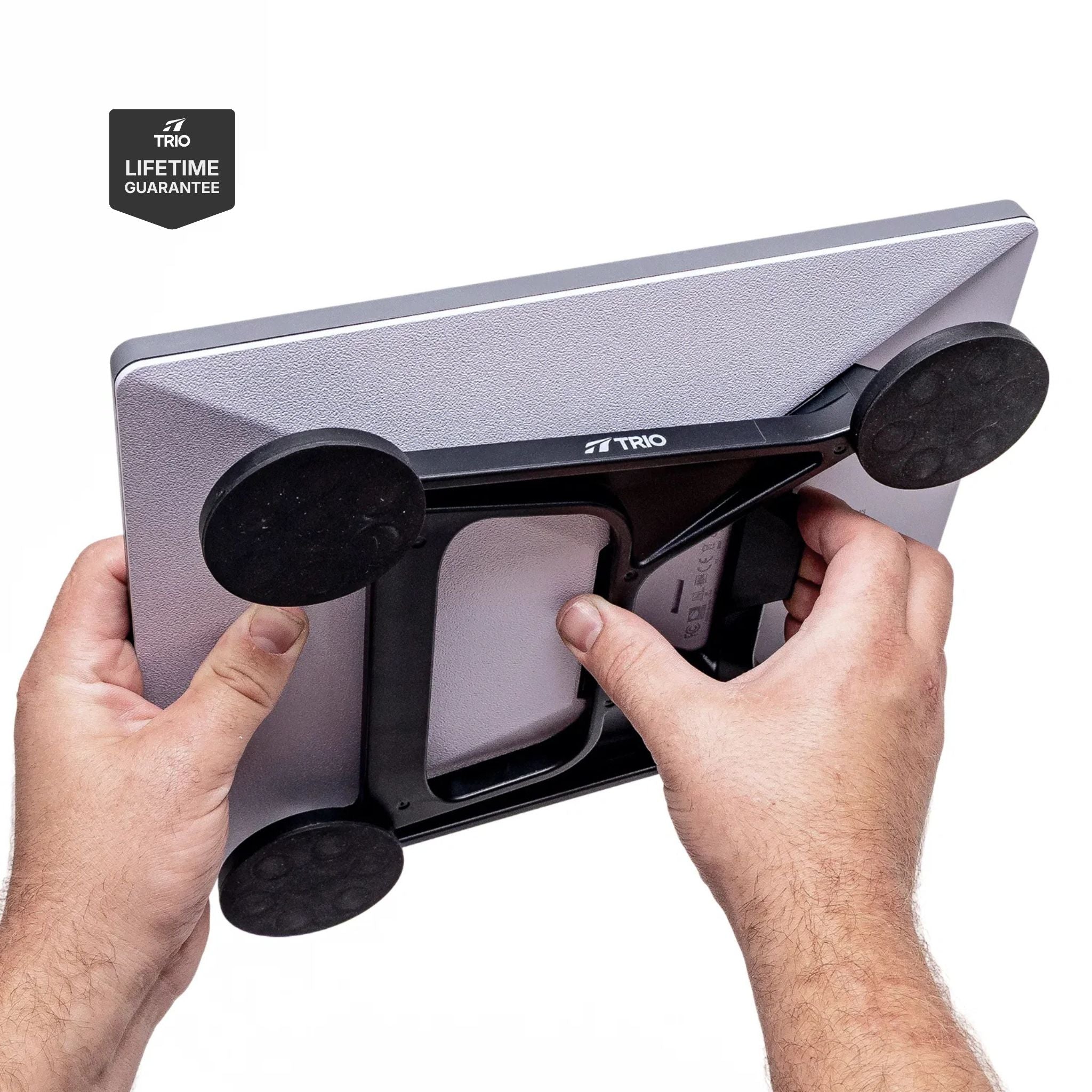

The TRIO Mini Flatmount is the perfect, low profile solution for mounting your StarlinkMini dish in a secure and convenient way. With various mounting options, you can take the Mini wherever you need to go. Simply click your dish into the Mini Flatmount and begin your adventure!

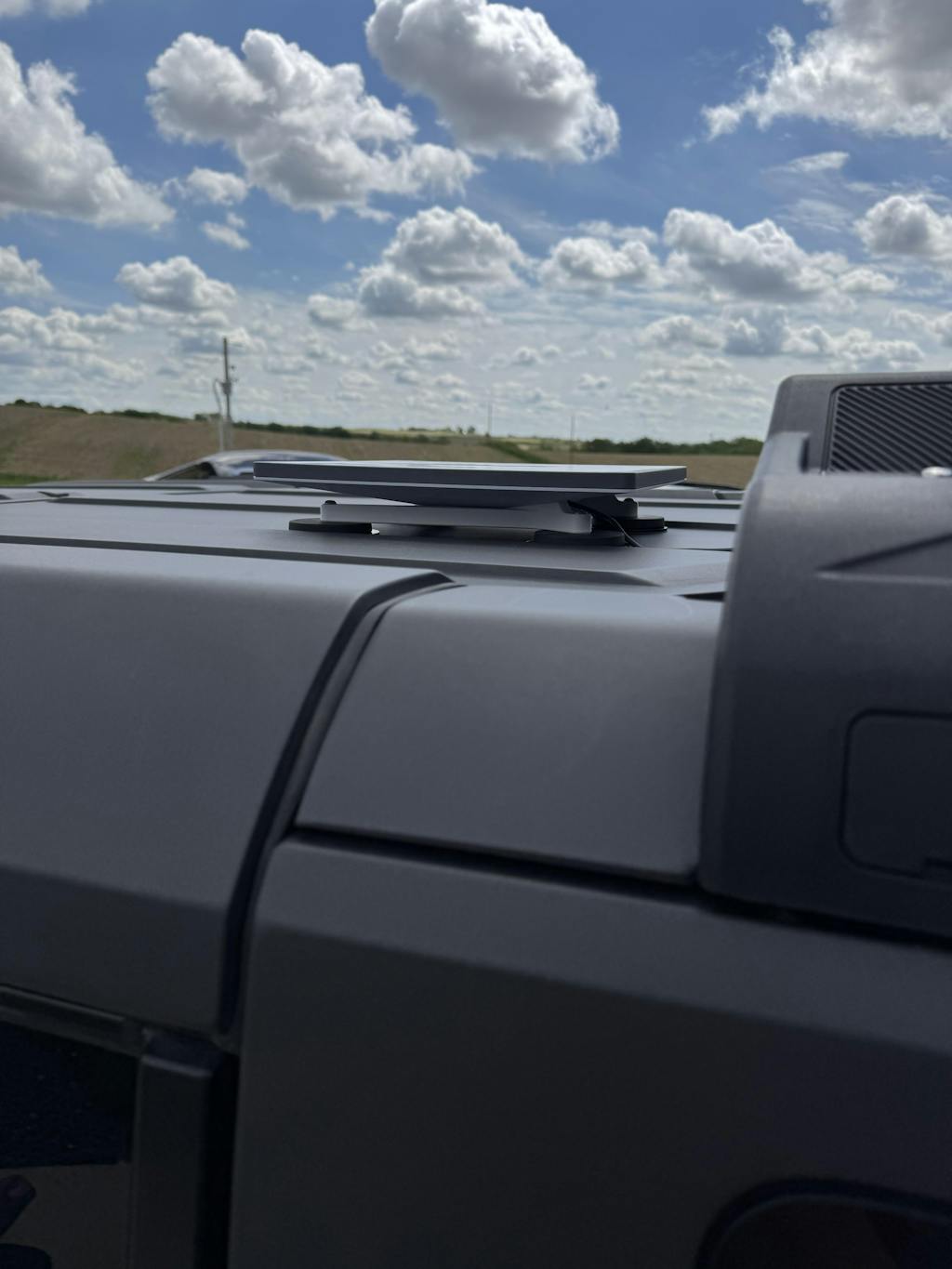

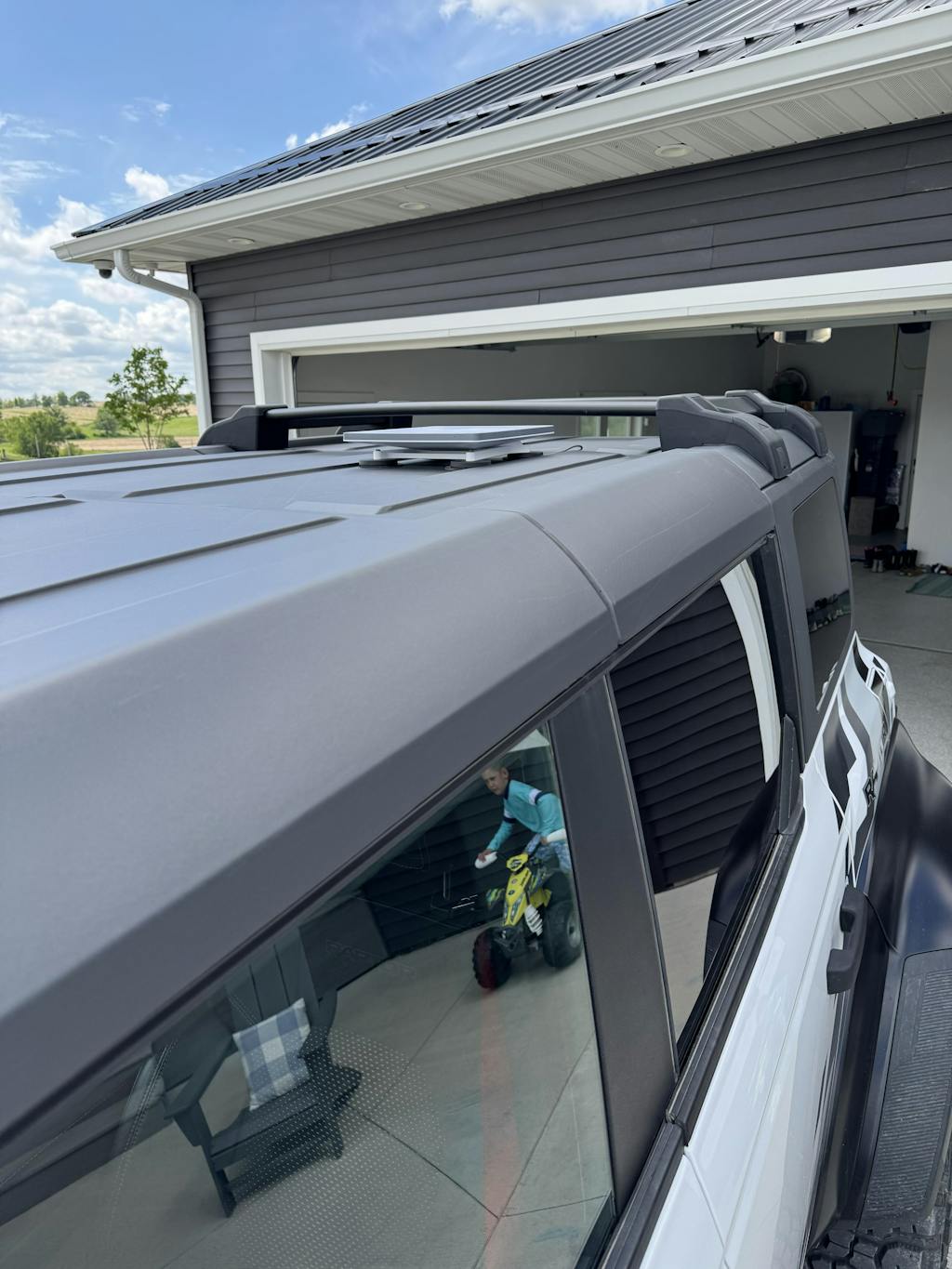

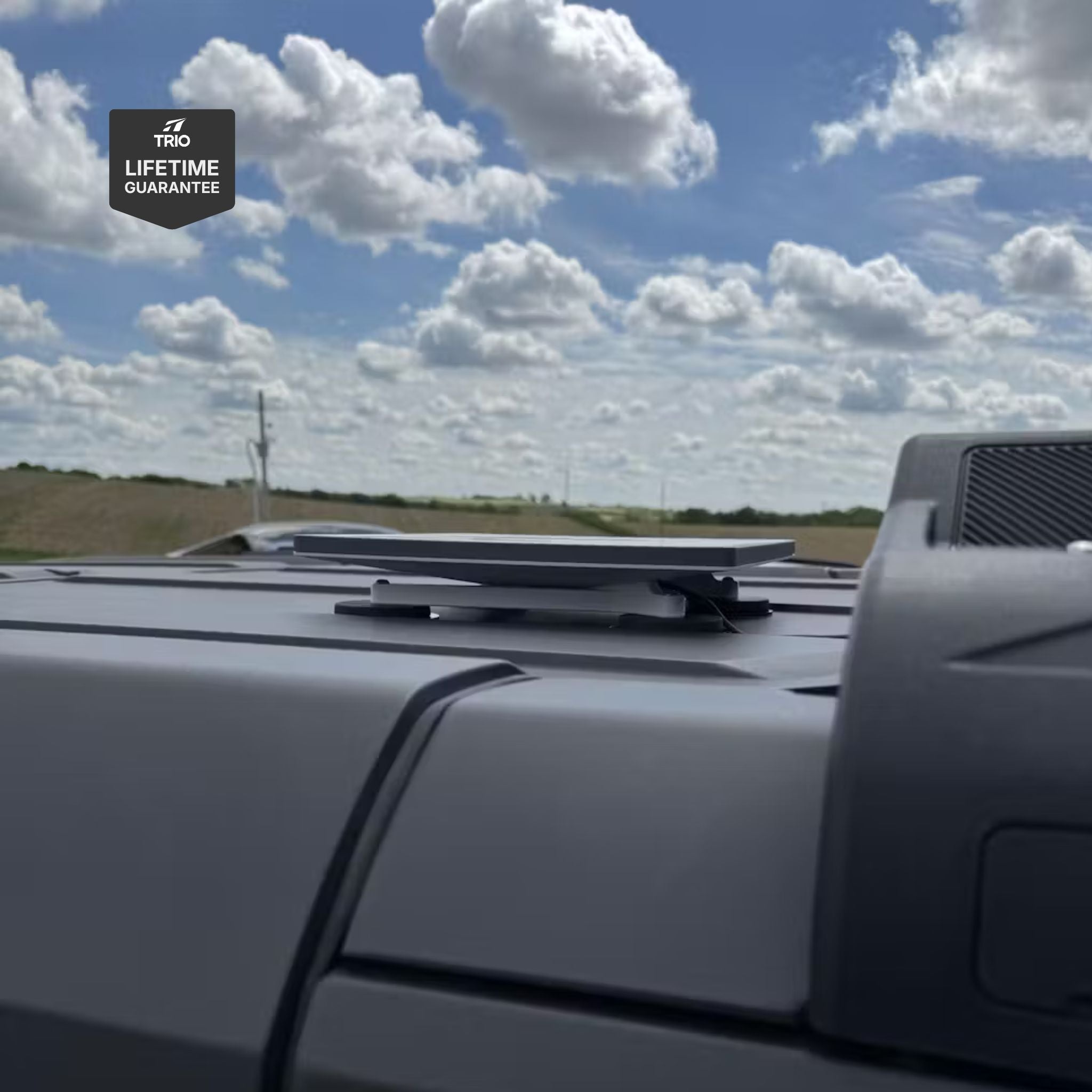

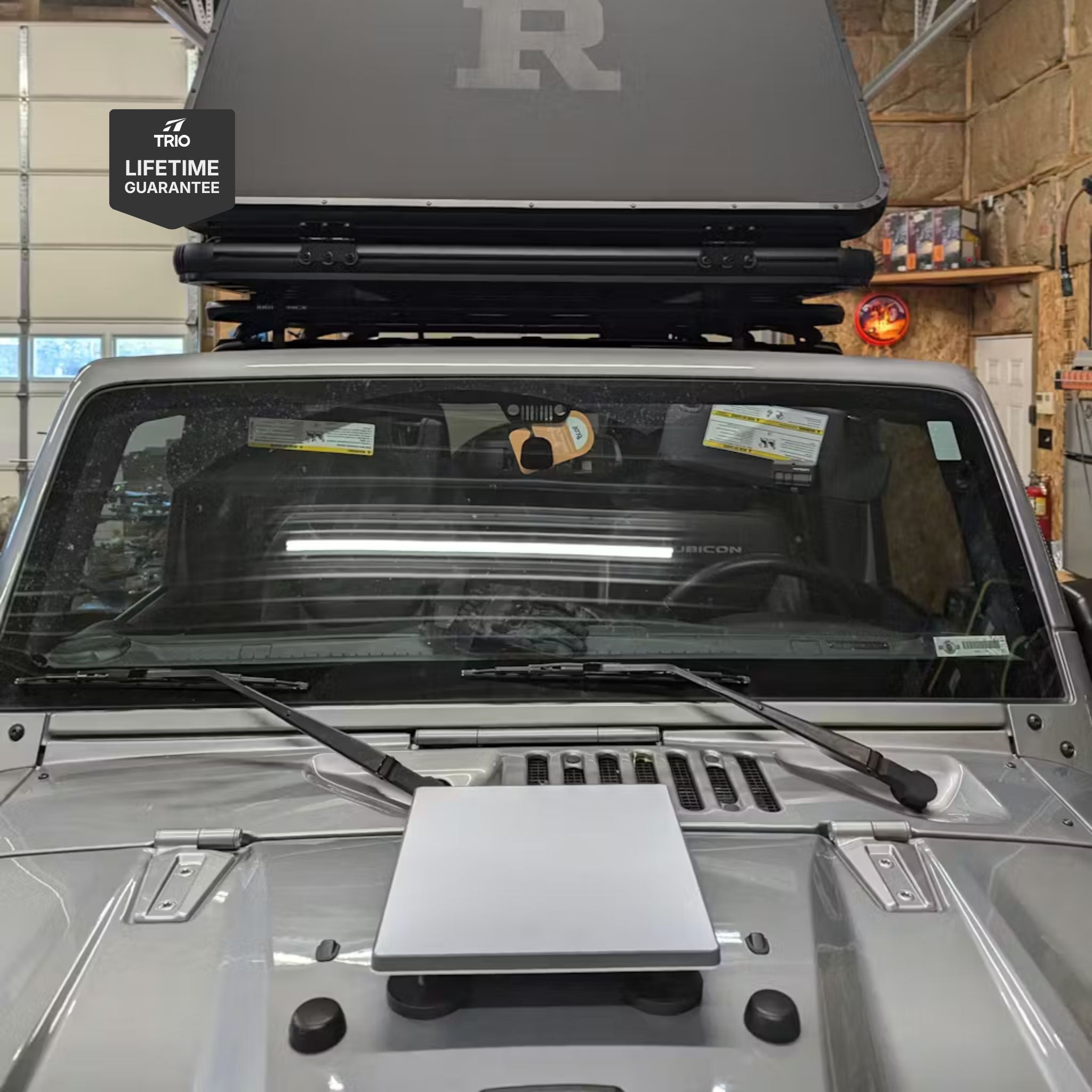

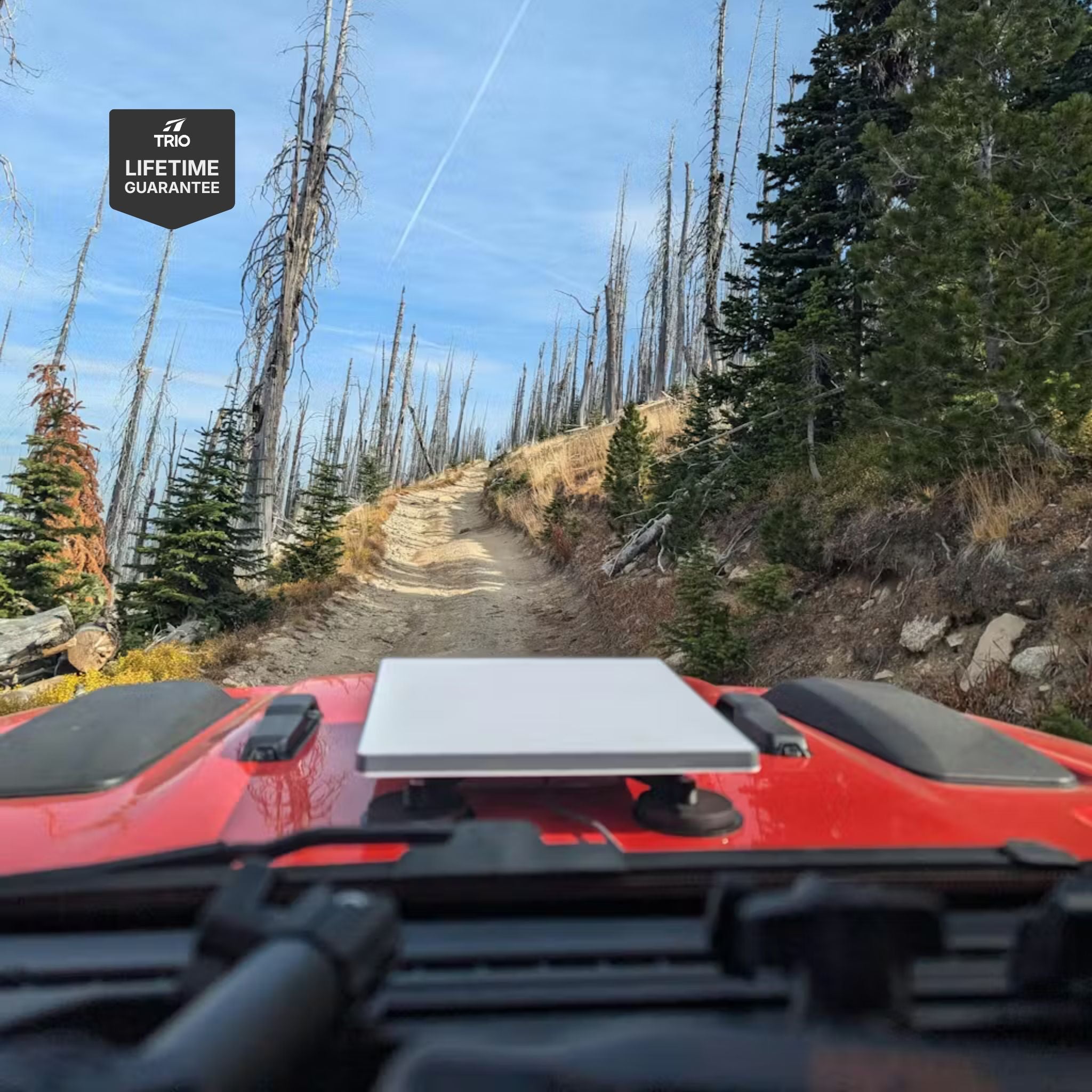

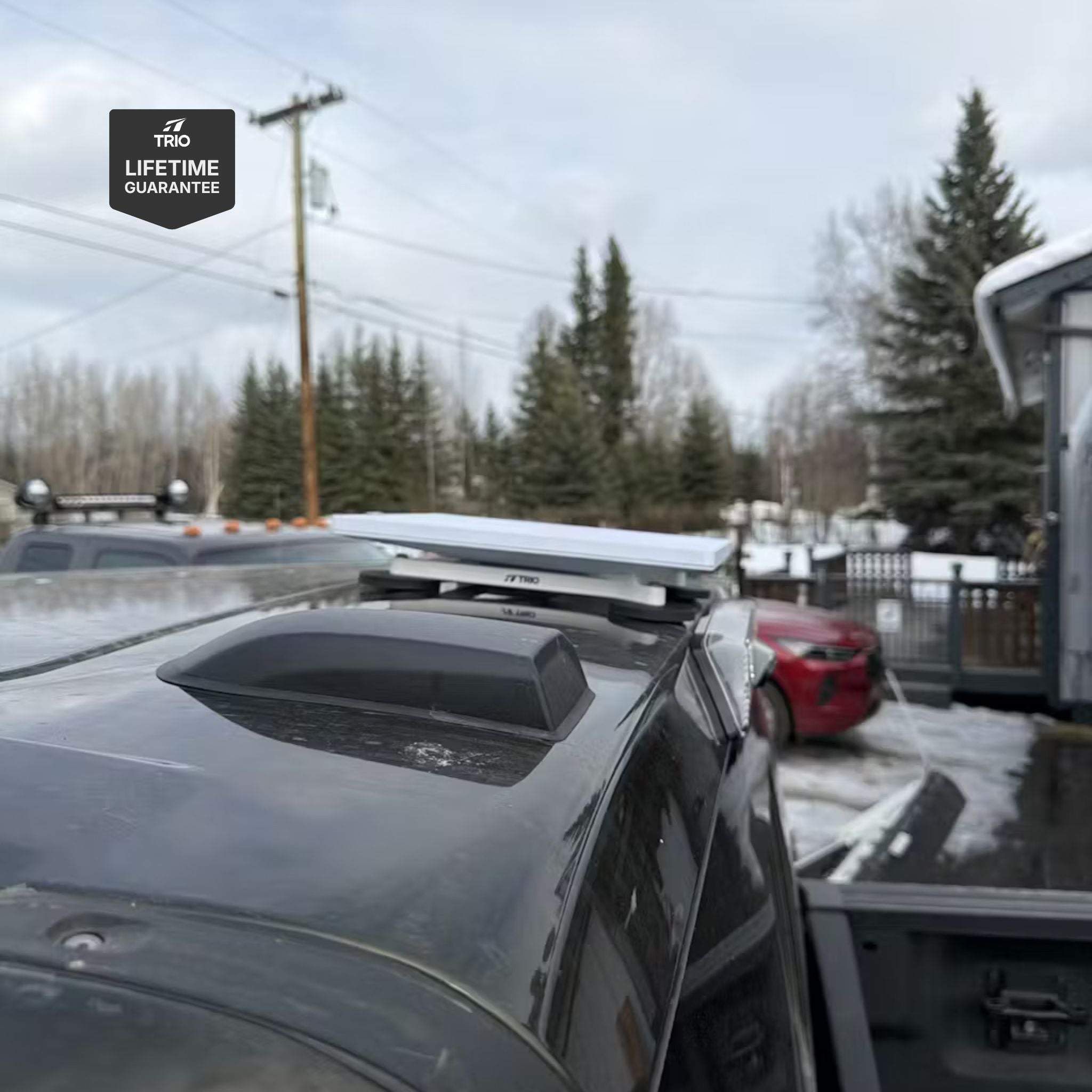

This mount, manufactured by industrial-grade injection molding, from ASA, is intended for permanent or temporary installation on any vehicle: Vans, RVs, Box Trucks, Campers, Boats, Sailboats, etc, and even allows you to strap the Mini onto your backpack!

NOTE: If you have a curved roof, the mount itself has slight flex but you may need to use our swivel leg adapters for maximum surface area contact when using rubber coated magnets, VHB landing pads, or suction cups. Please add to your order if required.

** Strength: This mount has been designed to be used (and has been tested) in normal driving conditions and turbulence but it is recommended to install behind another item (e.g. AC unit, storage box, etc) for wind dampening and to protect the dish. It is ultimately up to the end user to make sure the antenna mount is secured appropriately.

For additional info and mounting instructions, see below.
Installation

See installation instructions here: Installation Instructions
Specifications

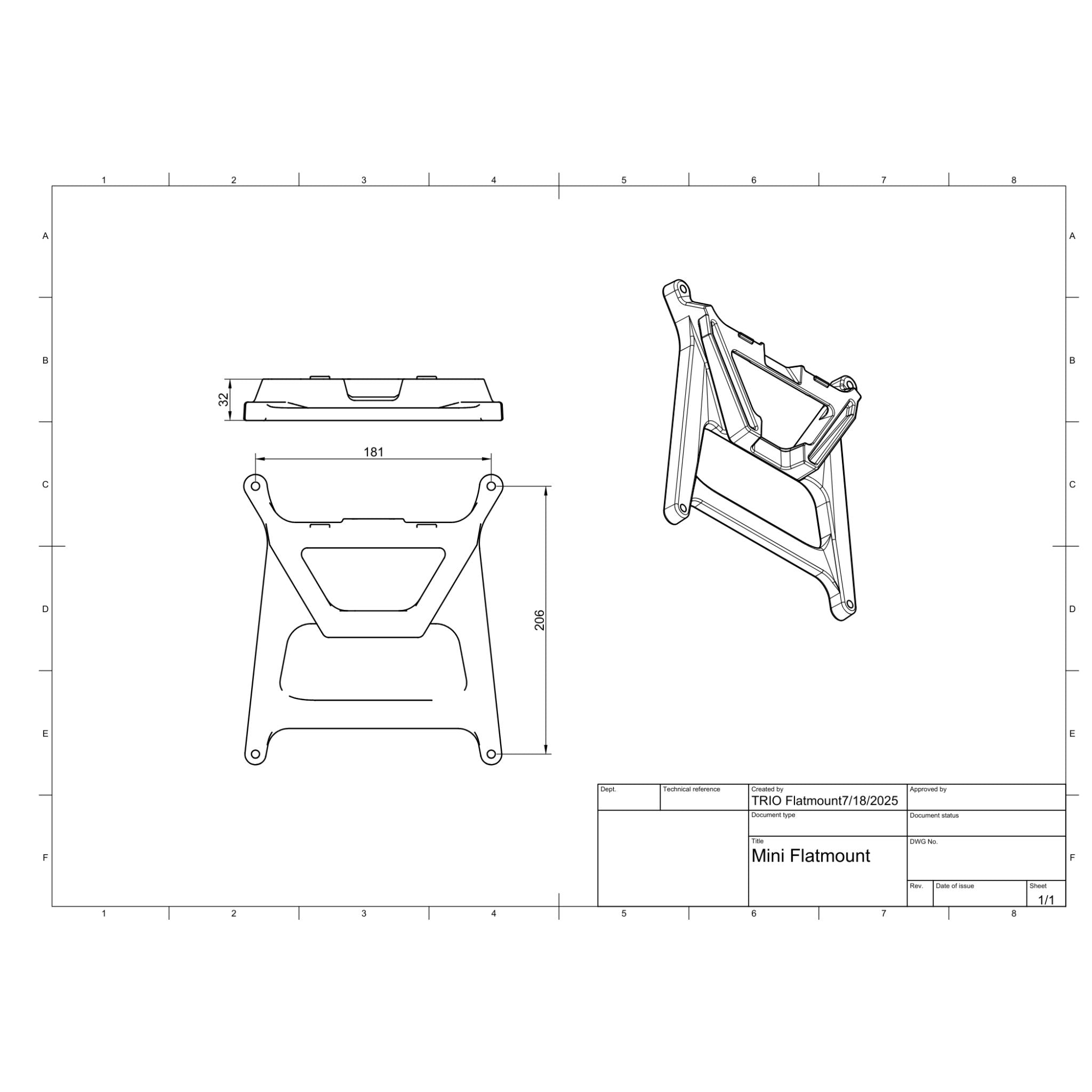

Assembled Dimensions:

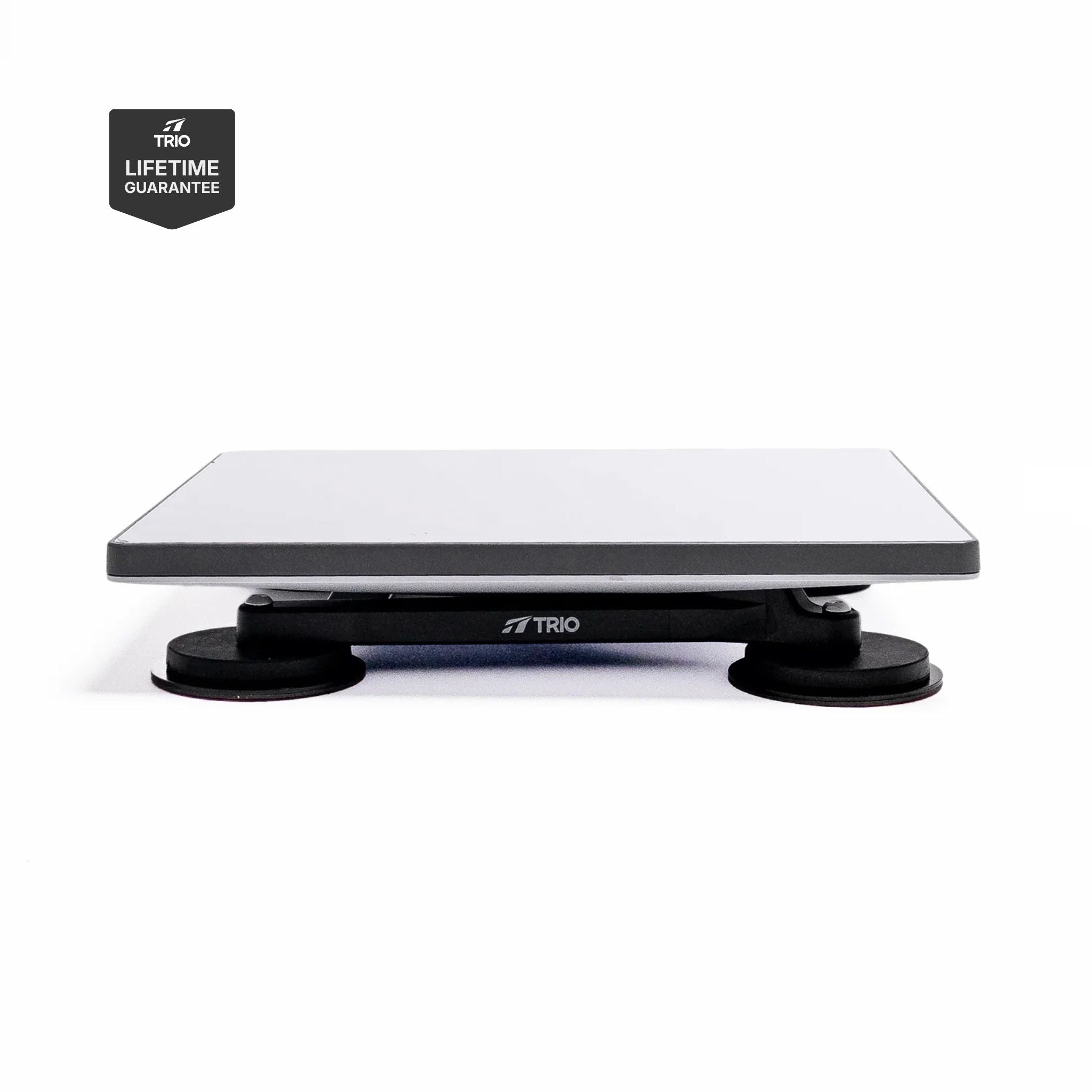

Height: 2.0” (2.5” with magnets)
Weight: ~0.9 lbs (408 g)

Mounting Options:
Rubber-Coated Magnets, VHB Landing Pads, Suction Cups, Through-Bolting Kits, or combination setups

Compatibility:
Starlink Mini (UTA-231 and all sub-versions)

Operating Temperature:
-40°F to 150°F (-40°C to 65°C)

Material:

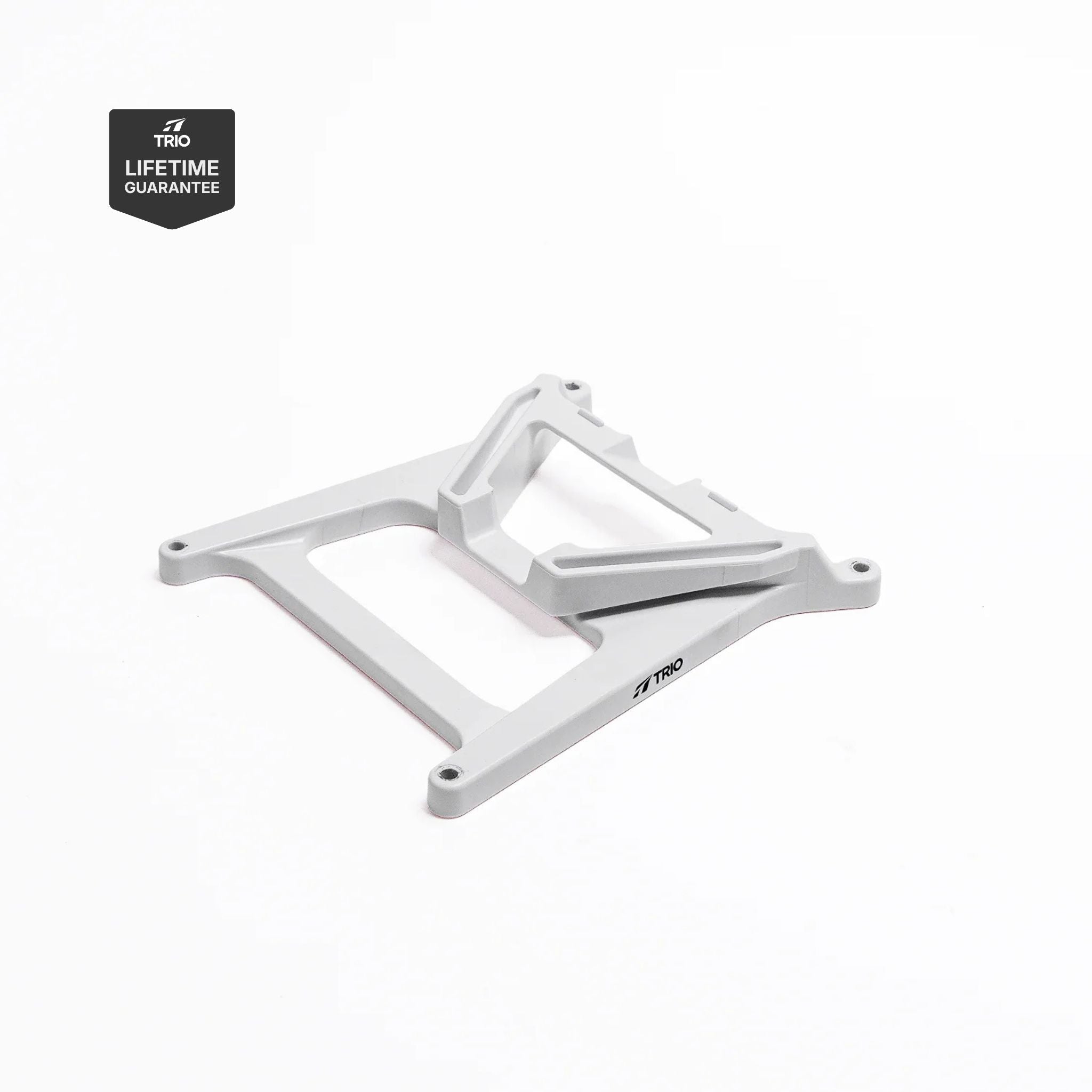

UV-Resistant ASA Injection Molded Plastic

Mounting Heights:

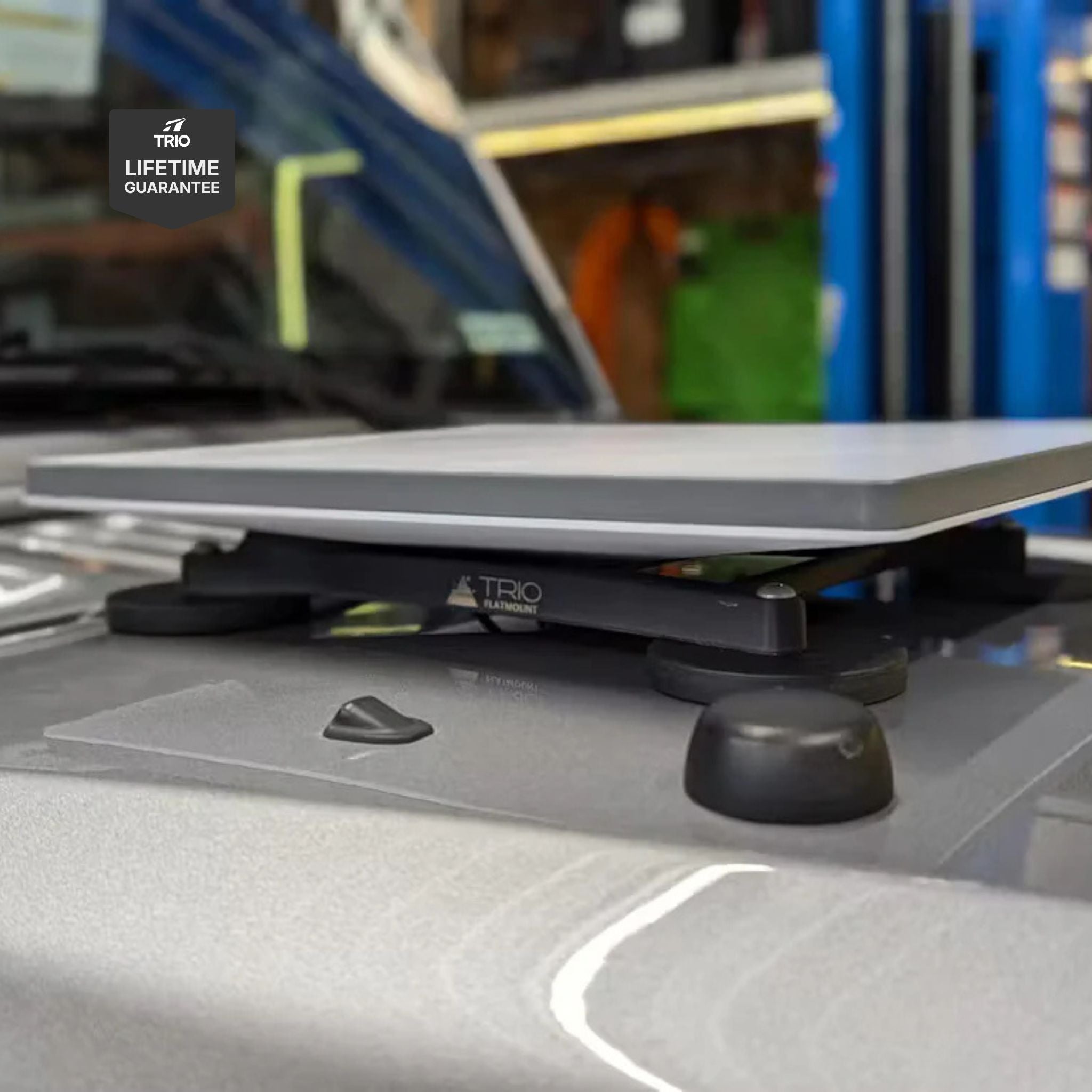

Rubber-Coated Magnets (inner): 2.0” (53 mm)
Magnet with VHB Disc: 2.13” (55 mm)
Heavy-Duty Suction Cup: 3.75” (95 mm)
Through-Bolting: 1.75” (45 mm)
Important Information

⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

Non-Flat or Ridged Roof? Read This Before Mounting

If your vehicle's roof has raised ridges or contours, any attachment may not achieve full contact with the roof surface, and full contact is required for a secure hold. Without it, the mount can detach at highway speeds. If your roof has ridges, we recommend:

  • Ensuring all attachment points are flush and fully in contact with the roof before driving
  • Testing the mount at low speeds before highway use

Not sure if your setup is compatible? Reach out before purchasing at contact@trioflatmount.com and we'll help you find the right solution.
View details
Mini Flatmount

TRIO Lifetime Guarantee

Read more about the TRIO Lifetime Guarantee.

Learn More

Frequently Asked Questions

Will the Mini Flatmount hold in high winds and dusty conditions?

Yes. The Mini Flatmount is engineered and tested for high-wind and rough-condition use. As long as you've installed it on a clean surface and the mount doesn't budge when you give it a firm push, you're good to go. If you've chosen suction cups as your attachment method, give the suction a quick check before any drive.
I'm mounting to an aluminum surface. What attachment should I use for the Mini Flatmount?

Attaching the Mini Flatmount on an aluminum body, you've got a few options depending on how permanent you want the install. Aluminum is non-ferrous, so:

For a permanent install, go with our VHB Adhesive Landing Pads. They bond directly to the aluminum.

For semi-permanent, pair our Rubber-Coated Magnets with our VHB Metal Discs. The disc bonds to the aluminum and the magnet locks onto the disc, giving you a strong hold you can still remove later.

Heavy-Duty Suction Cups are also an option if you want a fully removable setup.
I'm mounting on a fiberglass roof. How do I attach the Mini Flatmount?

Attaching the Mini Flatmount on a fiberglass roof, you've got a few options since fiberglass is also non-ferrous, same setup as aluminum:

For a permanent install, use our VHB Adhesive Landing Pads. They bond directly to the fiberglass.

For semi-permanent, pair our Rubber-Coated Magnets with our VHB Metal Discs. The disc bonds to the fiberglass, and the magnet locks onto the disc.

Heavy-Duty Suction Cups also work if you want a fully removable setup.
Are the magnets strong enough?

Yes. Each magnet has 60 lbs of holding force, so all 4 magnets together hold up to 240 lbs. To remove them, slide them side to side with a bit of force rather than pulling straight up.
I have a curved roof. What do I use for the Mini Flatmount?

Go with our Swivel Leg Mount Adapters. Each leg gets independent movement so the mount can conform to a curved surface and sit flush without rocking.

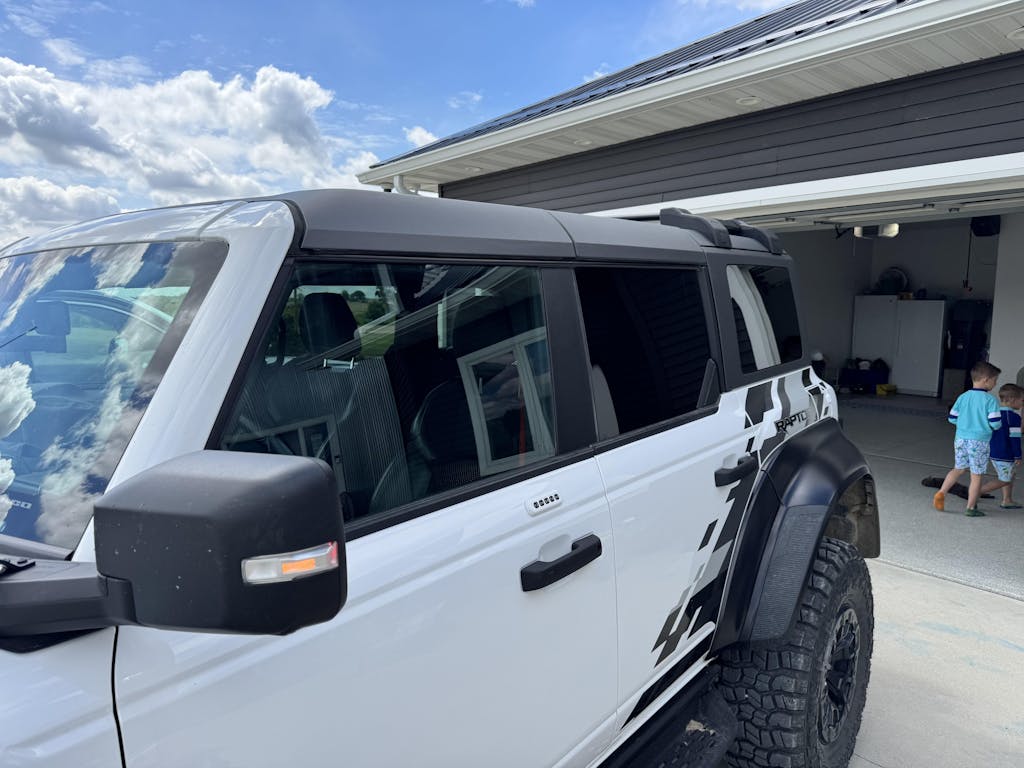

I have a Ford with an aluminum roof. Will the Mini Flatmount work?

Attaching the Mini Flatmount on a Ford roof, most Ford trucks newer than 2016 have an aluminum roof, which is non-ferrous, so you've got a few options depending on how permanent you want the install:

For a permanent install, go with our VHB Adhesive Landing Pads. They bond directly to the aluminum.

For semi-permanent, pair our Rubber-Coated Magnets with our VHB Metal Discs. The disc bonds to the aluminum and the magnet locks onto the disc, giving you a strong hold you can still remove later.

Heavy-Duty Suction Cups are also an option if you want a fully removable setup.

Yes, the Mini Flatmount will hold if you choose one of the above.
Can the Mini Flatmount go through a car wash?

We don't recommend it. The mount is built to handle weather and road grime, but automatic car washes put extra stress on the dish and attachment points with high-pressure jets and rotating brushes. Remove the dish (and the Mini Flatmount if you're going through a touchless or brush wash) before you head in, then reinstall once you're out.
How do I power the Mini Flatmount?

Use our Mini 12V DC Power Cable. It's heavy-duty and low-profile enough that you can close a door on it without crushing the cable.

Available in 10ft and 15ft lengths. End options are bare wire leads, ring terminals, or a cigarette lighter plug. The cigarette lighter plug is our most popular.
Does the Mini Flatmount come with attachments?

No, the Mini Flatmount doesn't come with attachments. You pick the attachment method separately so it fits your vehicle and use case. Options include Rubber-Coated Magnets, VHB Metal Discs, VHB Adhesive Landing Pads, Heavy-Duty Suction Cups, and Swivel Leg Mount Adapters.
Do you have a guarantee?

Yes. Every TRIO mount purchased directly from trioflatmount.com is covered by our TRIO Lifetime Guarantee. If your mount ever fails, send photos or video of the issue along with your order number to contact@trioflatmount.com and we'll take care of it.
