Gen 3 12V Power Supply

$90.00

54 reviews
Free Shipping
On Orders Over $175
Description

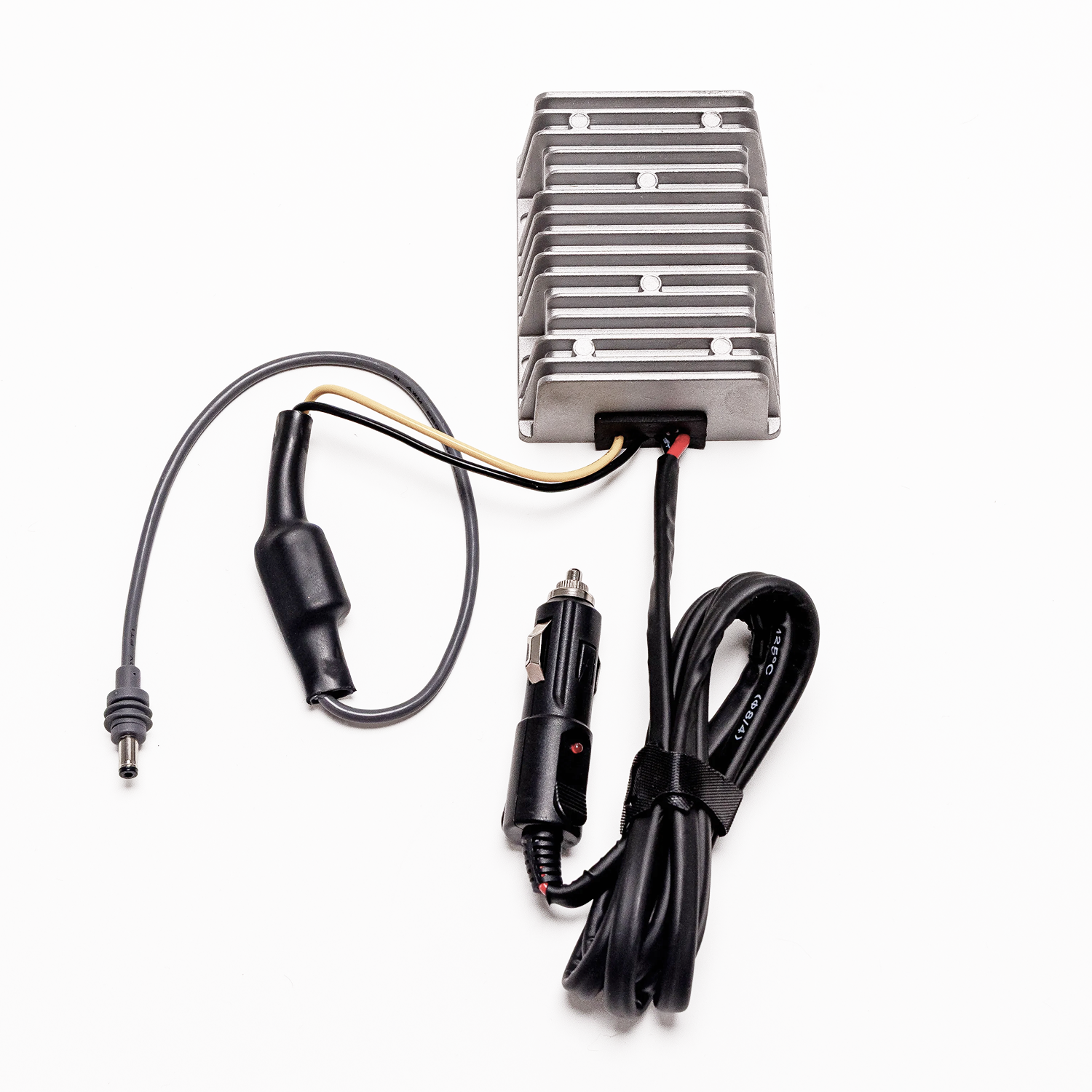

Our Gen 3 12V power supply plugs directly into the Gen 3 Starlink Router. This eliminates the wasted idle draw of powering it through a large inverter (30-50 watts waste for a 3000W inverter!).

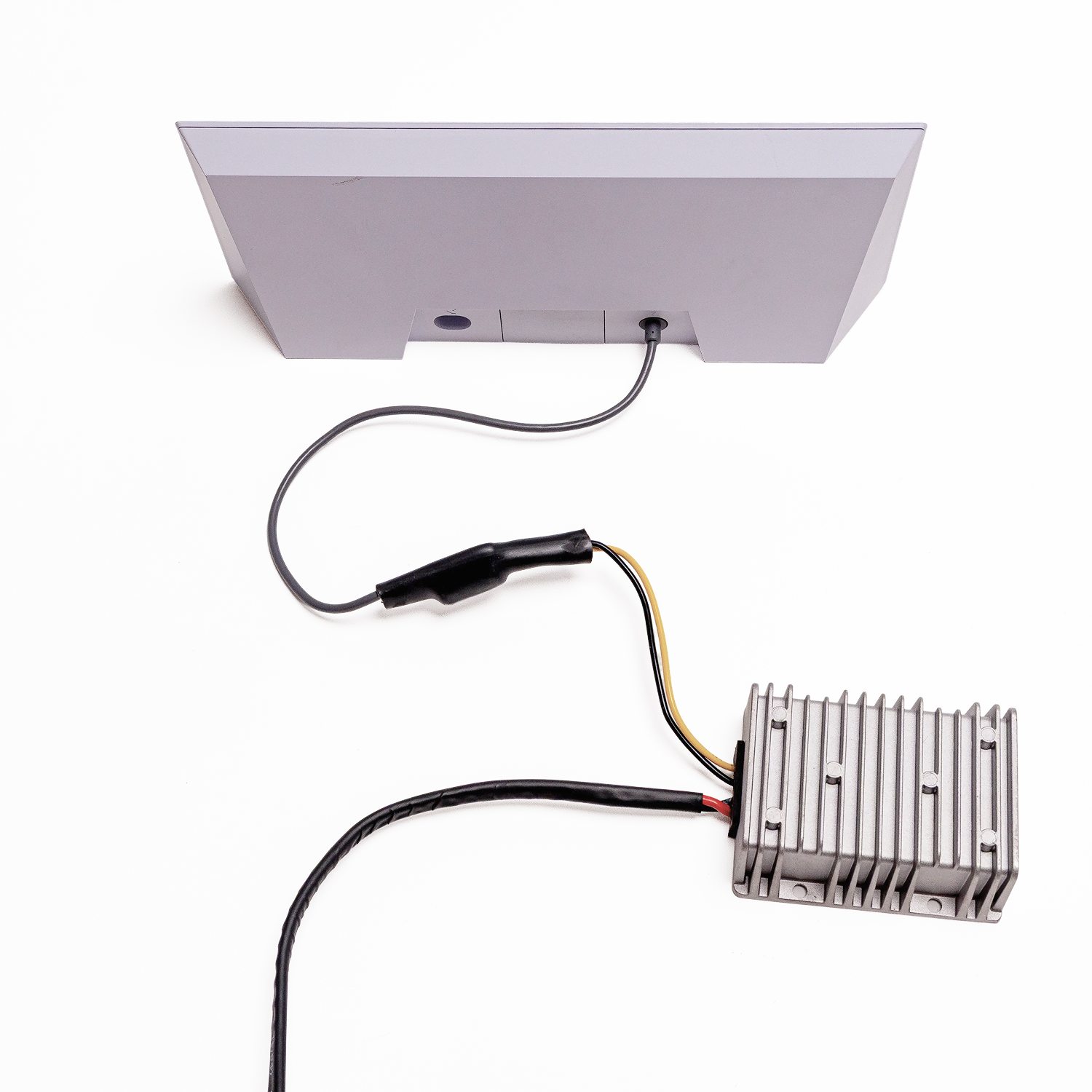

Simply unplug the 110V Starlink power supply and plug in our 336W power supply and connect it to a 12V OR 24V power source (Input voltage range is 10-30V). Our converter boosts this to the 56V that the Gen 3 router and dish need. Also build into the converter is a small indicator light, making setup and install much easier.

After testing numerous power supplies we finally had one manufactured overseas. To eliminate any concern about ripple voltage (and subsequent drop outs and/or reduced speeds), we install a capacitor as well as the appropriate barrel connector that works seamlessly with the Starlink Gen 3 router.

Power Consumption tested over 1 hour with constant upload/download internet: 63 Wh (4.5A at 13.8V).

** NOTE: Using snow melt function draws an additional 120W and cannot be used with cigarette lighter plug as most vehicles have a 10A limit.

** If wanting to extend the barrel connector length, we recommend adding a barrel connector extension.

Please select the appropriate connector for your application from the drop down: bare wire leads, ring terminals, or cigarette lighter plug (must be 15A or greater cig plug).
Installation

If connecting to a 12V fuse block, please use a 15A fuse for use with snow melt function or 10A without snow melt (We recommend not lengthening the included 12V power supply cable length, but if needing to please size appropriately based on cable length and fuse size. Seek professional electrical assistance if required).

If connecting to a 24V fuse block, please use a 10A fuse

NOTE: This can also be used to power an appropriate POE to eliminate the SL router entirely (little to no power saving unless you already have a dedicated cellular MIMO router like a Peplink, etc).

Important Information

⚠ Given the varying conditions and applications that this can be installed in, it is ultimately up to the end user to make sure the power supply is safely and appropriately connected to 12V or 24V power. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.
