Mini Flatmount

Regular price $100.00

14 reviews

Free Shipping
Over $175 (U.S. Only) 🇺🇸
Description

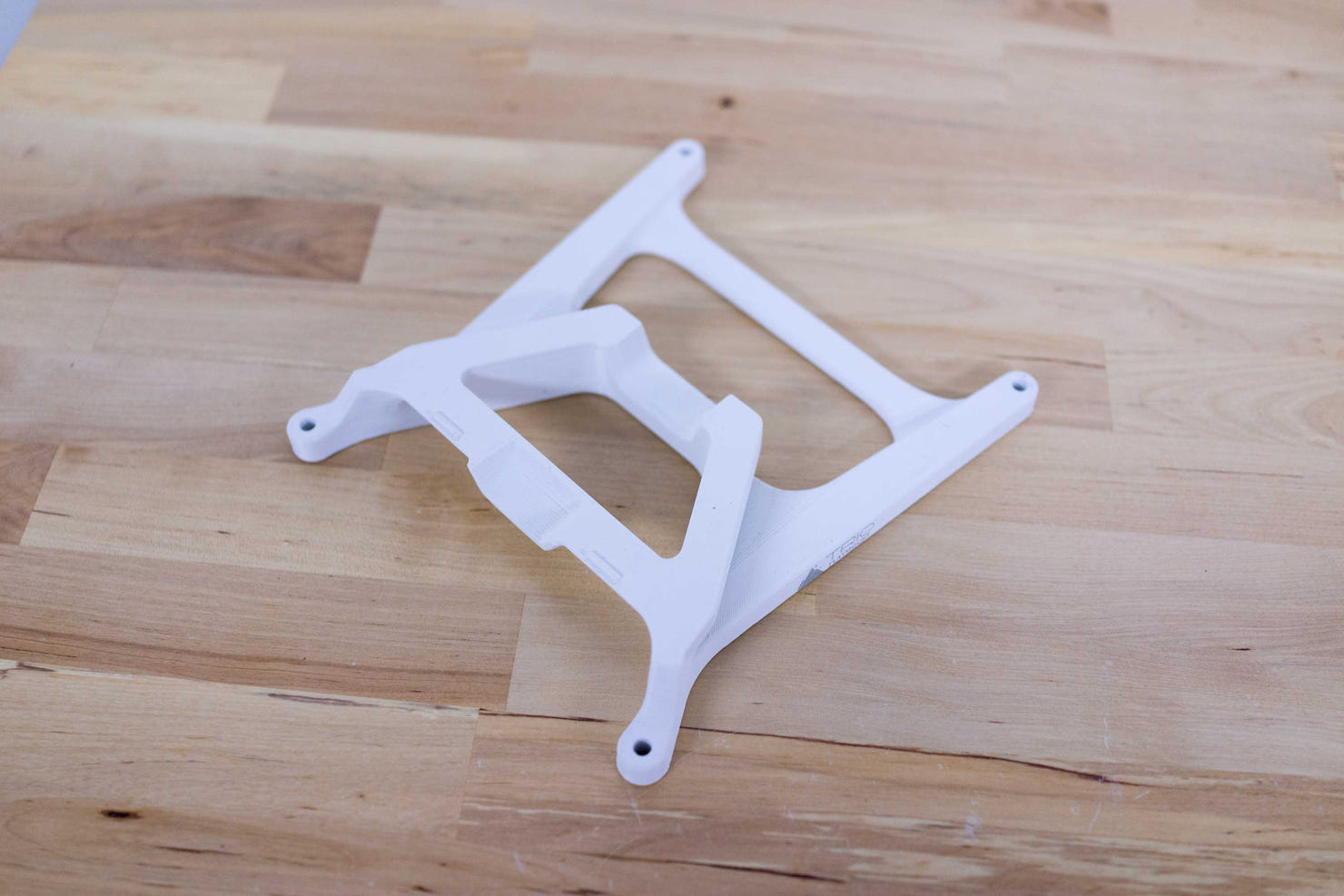

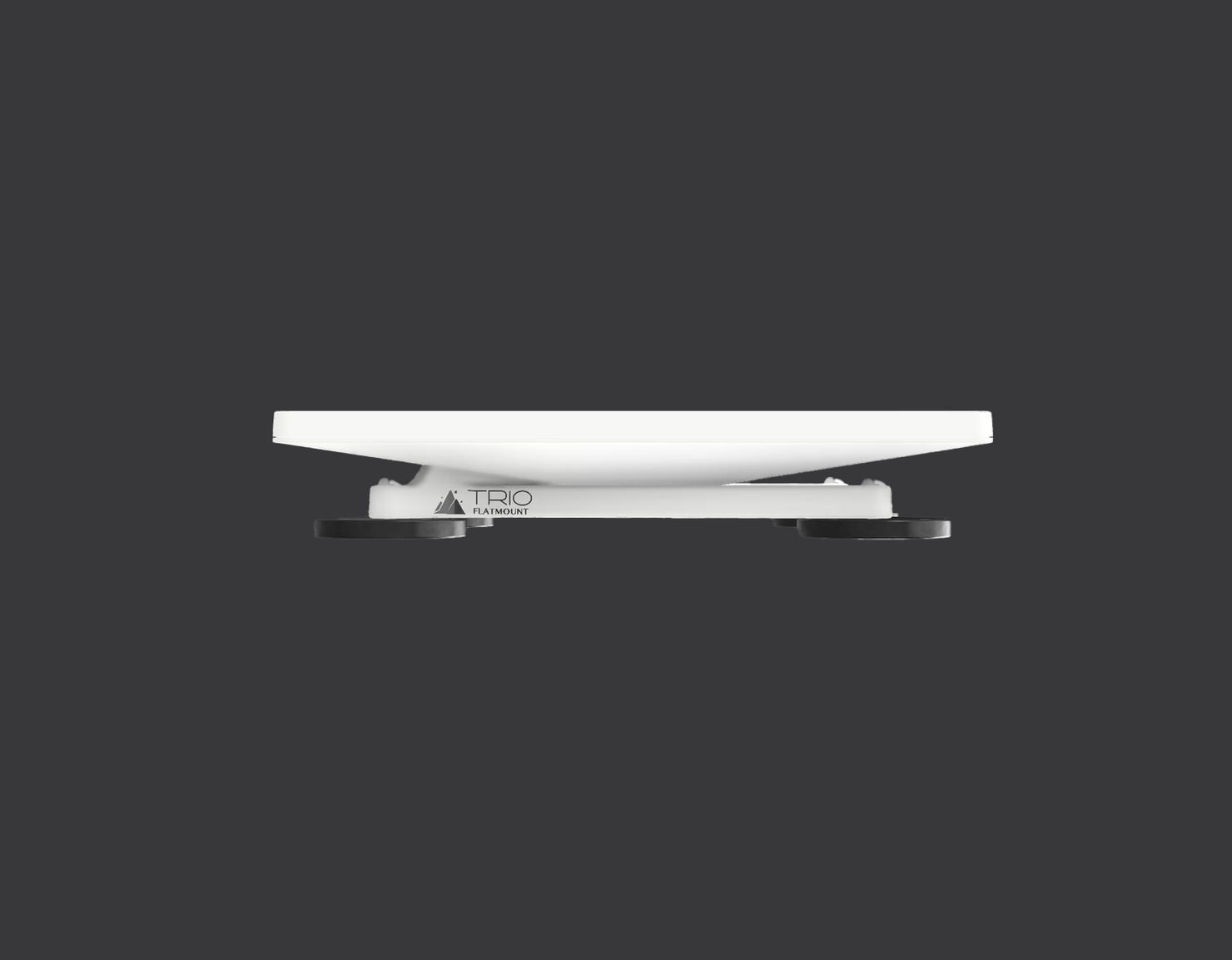

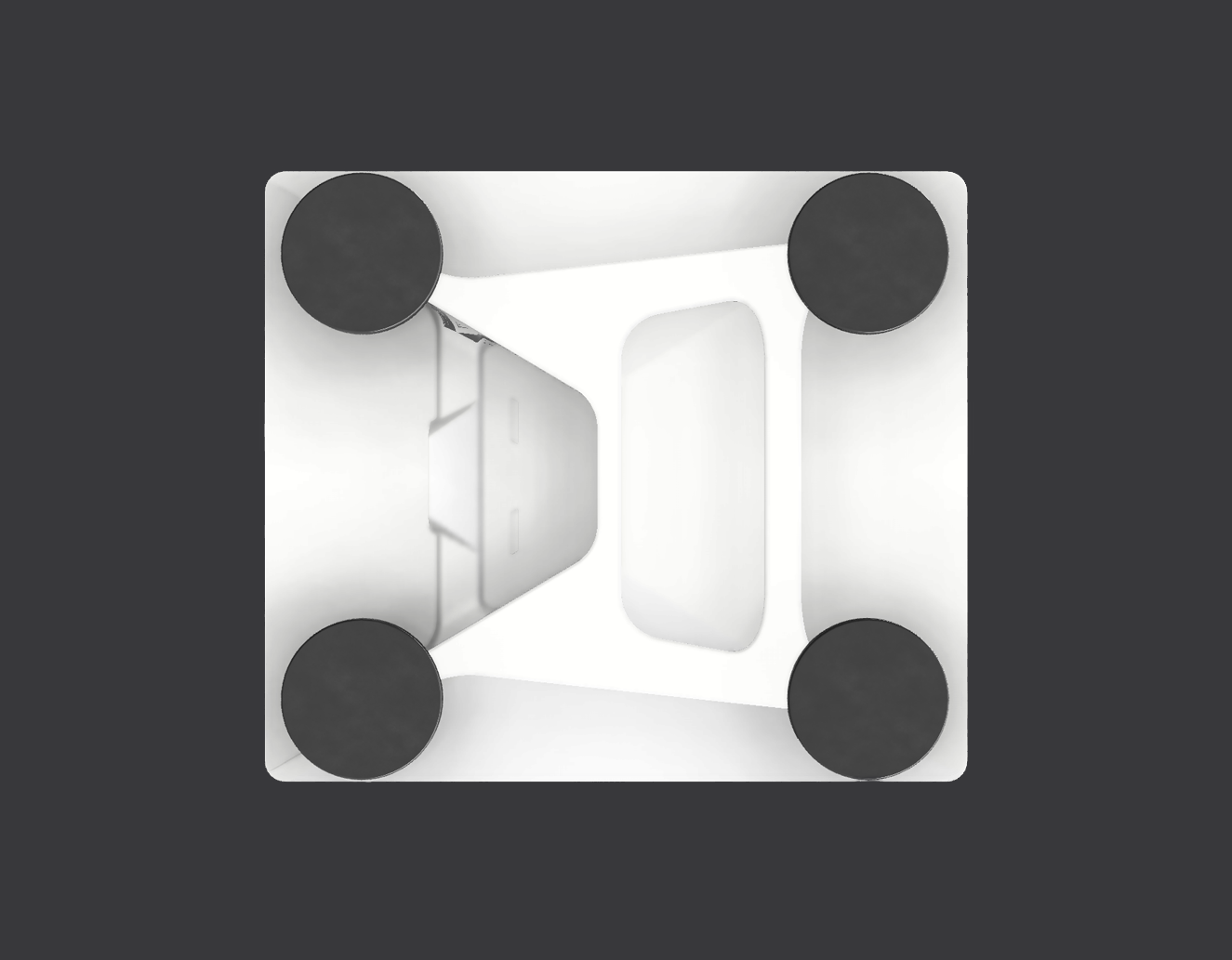

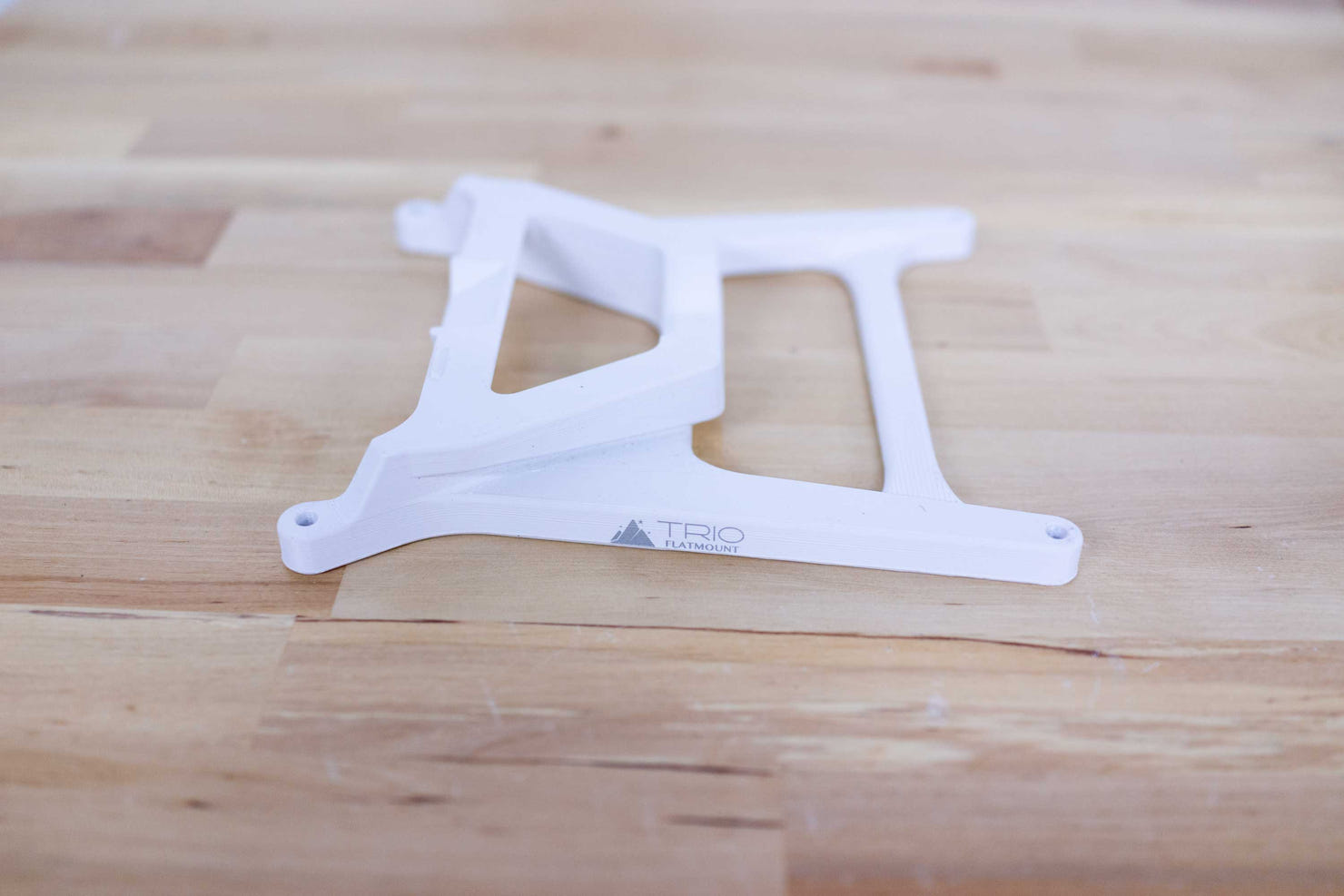

The TRIO Mini Flatmount is the perfect, low profile solution for mounting your StarlinkMini dish in a secure and convenient way. With various mounting options, you can take the Mini wherever you need to go. Simply click your dish into the Mini Flatmount and begin your adventure!

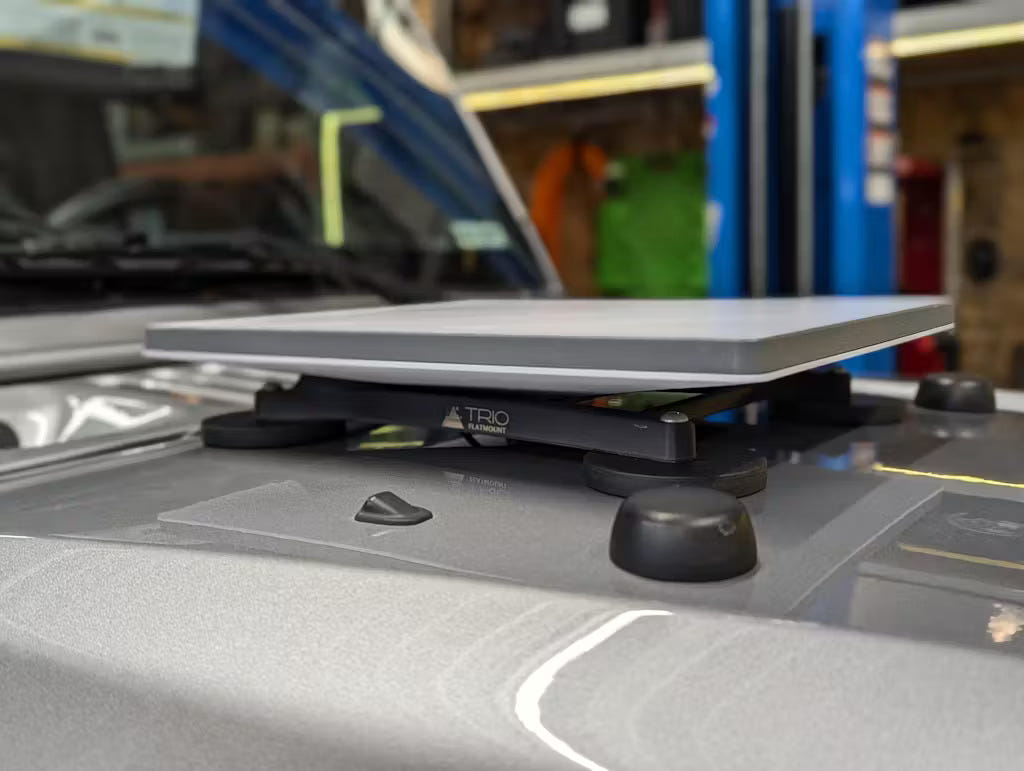

This mount, manufactured by industrial-grade injection molding, from ASA, is intended for permanent or temporary installation on any vehicle: Vans, RVs, Box Trucks, Campers, Boats, Sailboats, etc, and even allows you to strap the Mini onto your backpack!

NOTE: If you have a curved roof, the mount itself has slight flex but you may need to use our swivel leg adapters for maximum surface area contact when using rubber coated magnets, VHB landing pads, or suction cups. Please add to your order if required.

** Strength: This mount has been designed to be used (and has been tested) in normal driving conditions and turbulence but it is recommended to install behind another item (e.g. AC unit, storage box, etc) for wind dampening and to protect the dish. It is ultimately up to the end user to make sure the antenna mount is secured appropriately.

For additional info and mounting instructions, see below.

Installation

See installation instructions here : Installation instractions

Specifications

Assembled Dimensions:
Height: 2.0” (2.5” with magnets)
Weight: ~0.9 lbs (408 g)

Mounting Options:
Rubber-Coated Magnets, VHB Landing Pads, Suction Cups, Through-Bolting Kits, or combination setups

Compatibility:
Starlink Mini (UTA-231 and all sub-versions)

Operating Temperature:
-40°F to 150°F (-40°C to 65°C)

Material:
UV-Resistant ASA Injection Molded Plastic

Mounting Heights:
Rubber-Coated Magnets (inner): 2.0” (53 mm)
Magnet with VHB Disc: 2.13” (55 mm)
Heavy-Duty Suction Cup: 3.75” (95 mm)
Through-Bolting: 1.75” (45 mm)

Important Information

⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

Returns and Warranty

See our warranty here: Warranty
