Gen 3 Standard Flatmount

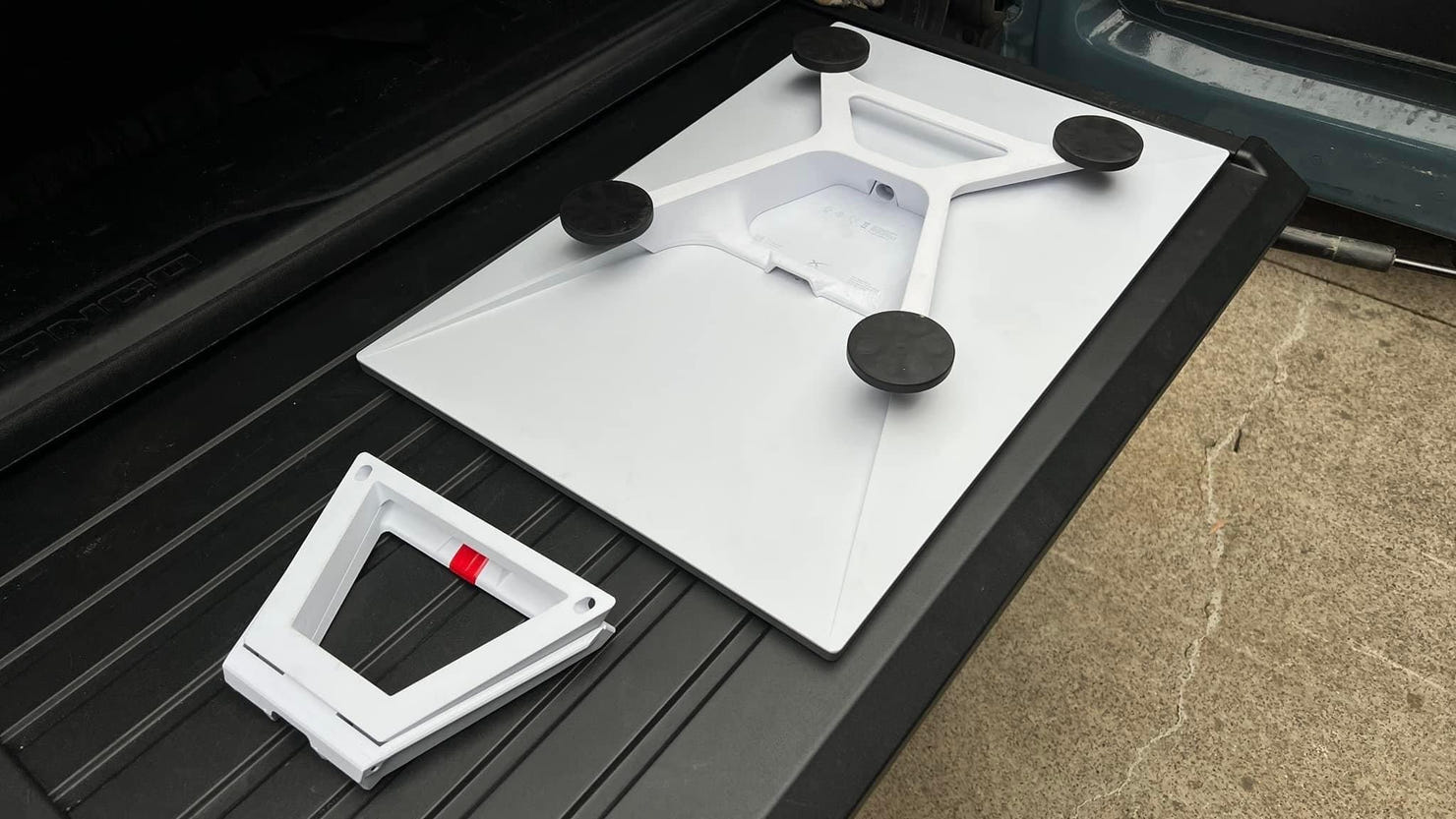

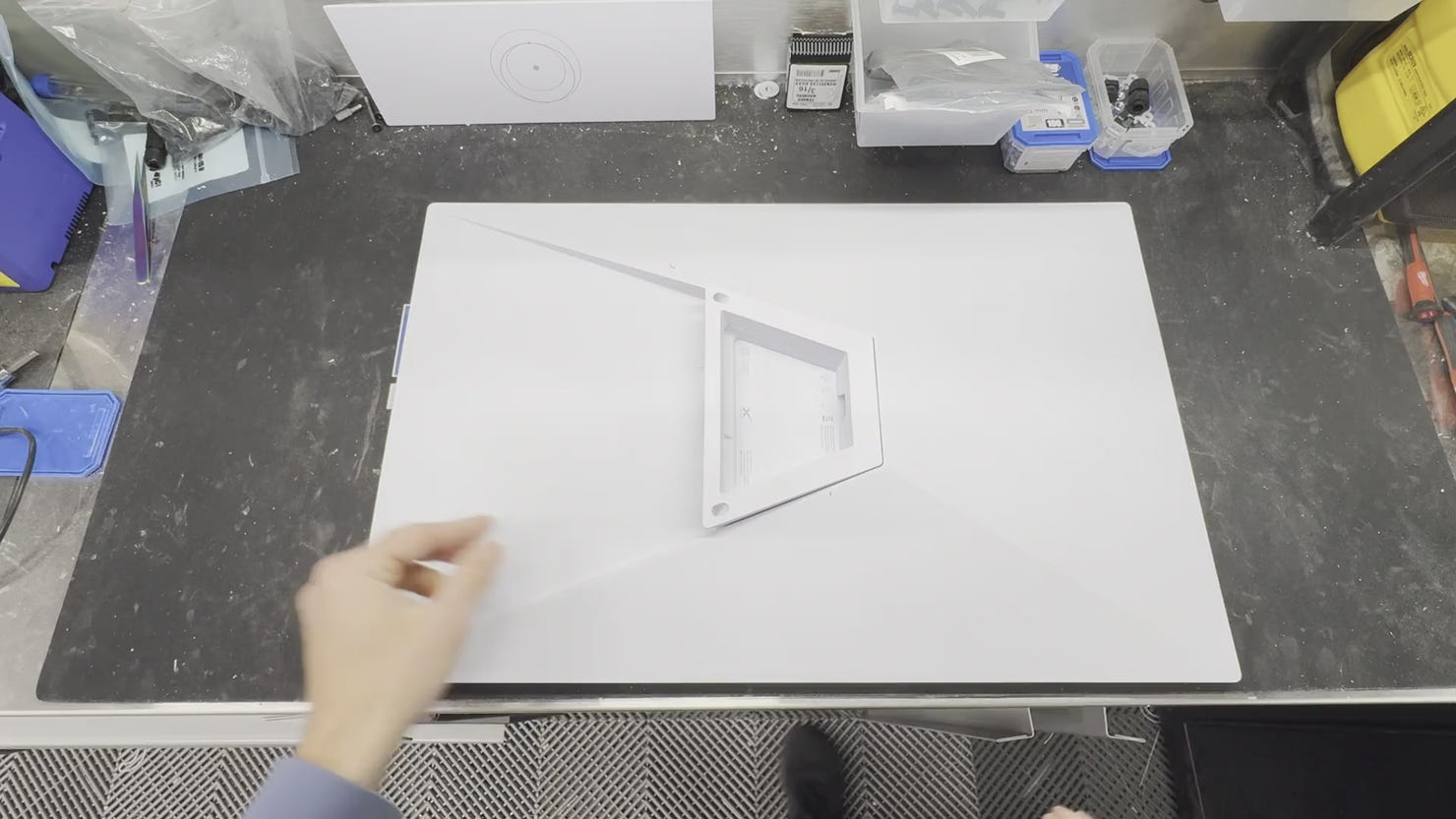

The TRIO Flatmount is a low profile mounting solution for those wanting to mount their Gen 3 Standard Starlink dish in a secure and convenient way on their boat, RV, or vehicle. Simply press the tabs on the Starlink kickstand and slide it out, and slide in the TRIO flatmount until it clicks in firmly and you’re all set!

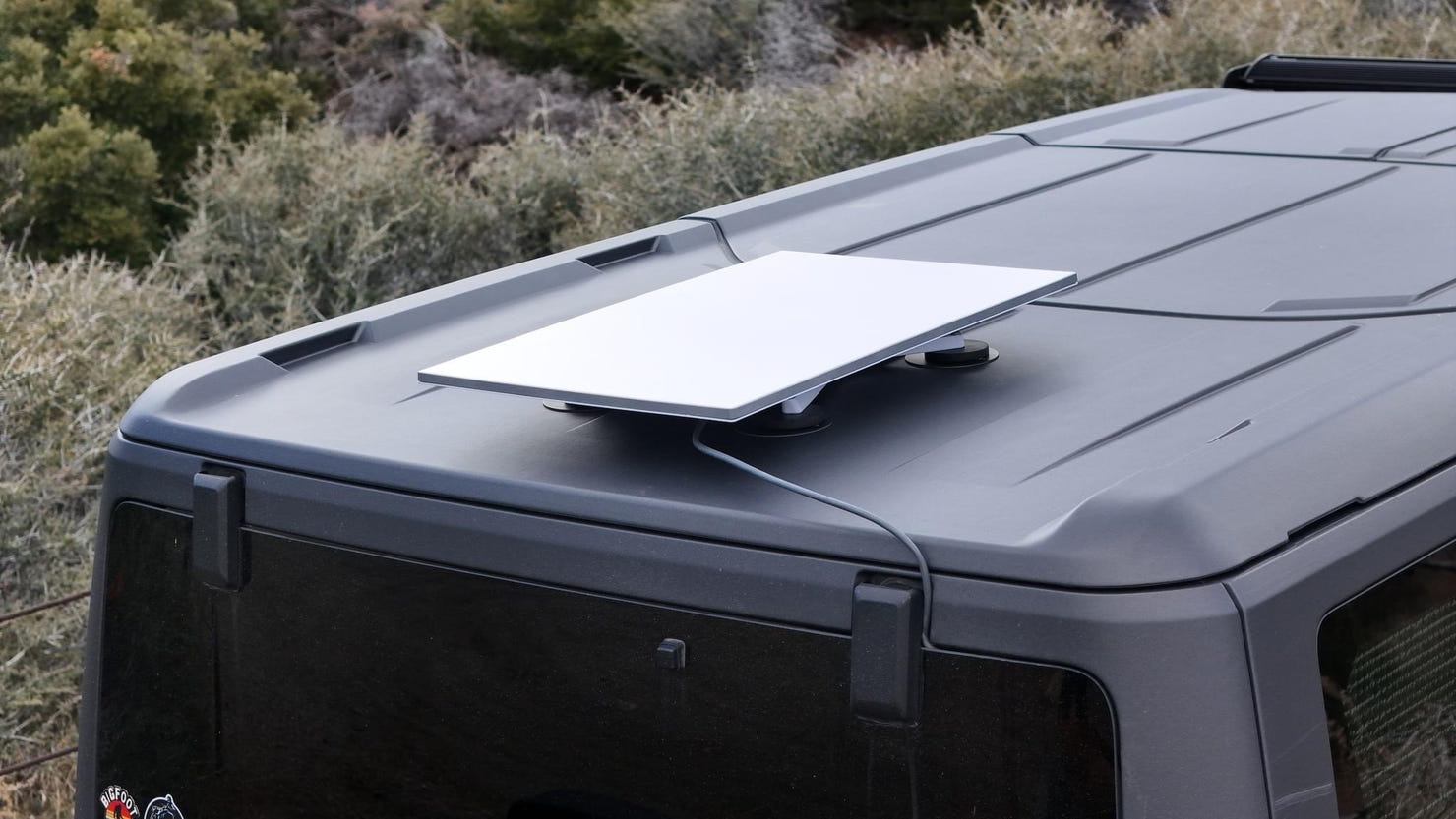

The Gen 3 TRIO Flatmount is intended for permanent or temporary installation on any vehicle: Vans, RVs, Box Trucks, Campers, Boats, Sailboats, etc. There are multiple mounting options as noted in the drop down menu.

NOTE: If you have a curved roof, the mount itself has slight flex but you may need to use our swivel leg adapters for maximum surface area contact when using rubber coated magnets, VHB landing pads, or suction cups. Please add to your order if required.

** Release Lever: Fixed mount options (through bolt and VHB adhesive) include our custom designed lever to allow easy removal of the dish from the mount when desired. This allows the user to quickly remove it from the vehicle and reinstall the starlink kickstand to deploy in another location (e.g. to use at home or away from vehicle when parked under trees)

** Strength: This mount has been designed to be used (and has been tested) in normal driving conditions and turbulence but it is recommended to install behind another item (e.g. AC unit, storage box, etc) for wind dampening and to protect the dish. It is ultimately up to the end user to make sure the antenna mount is secured appropriately. If fully mounting in a fully exposed location and/or using at highway speeds or faster we recommend our Gen 3 Speedmount.

For additional info and mounting instructions, see below.

See installation instructions here : Installation instractions

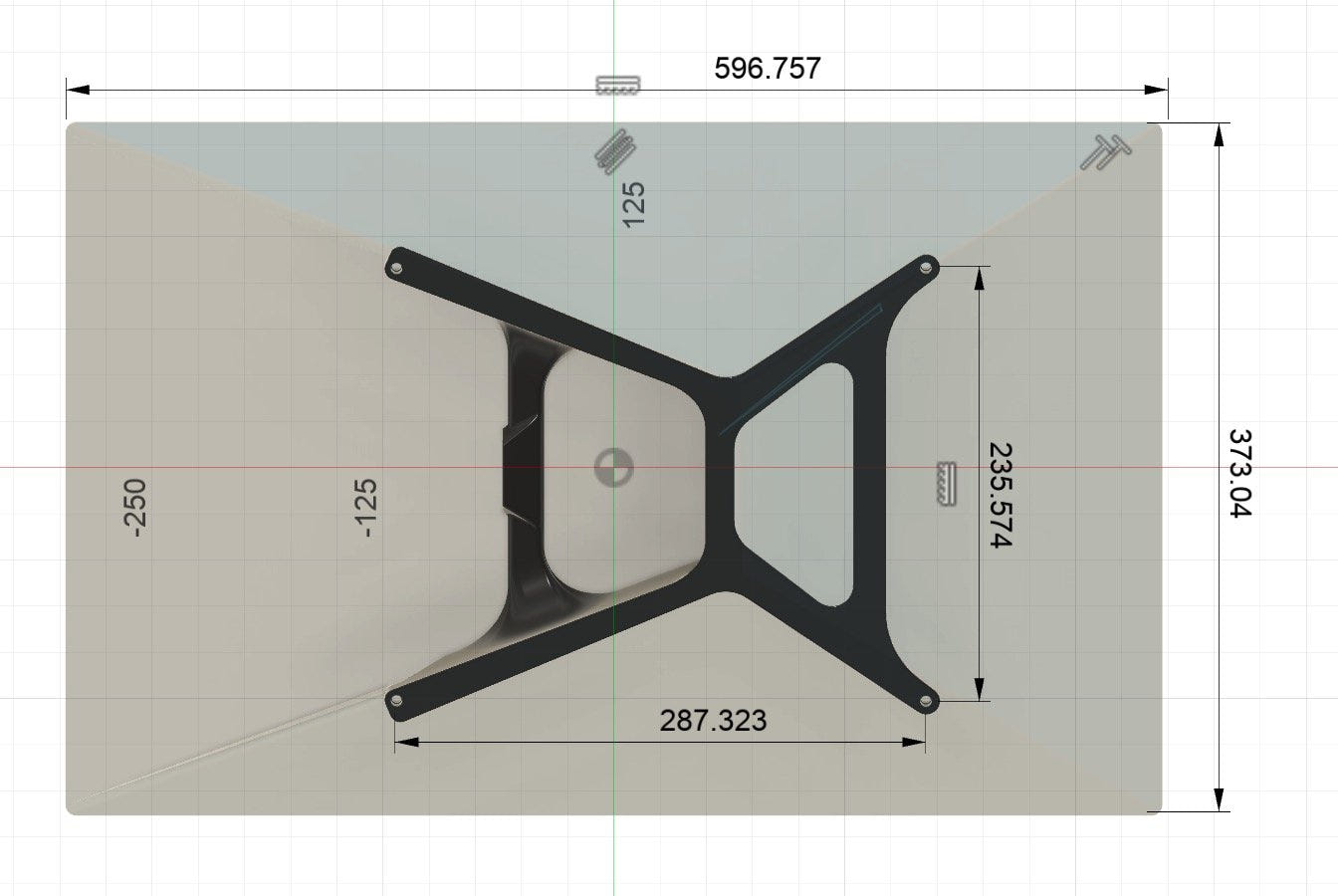

Assembled Dimensions:

Length: 25.65”
Width: 17.37”

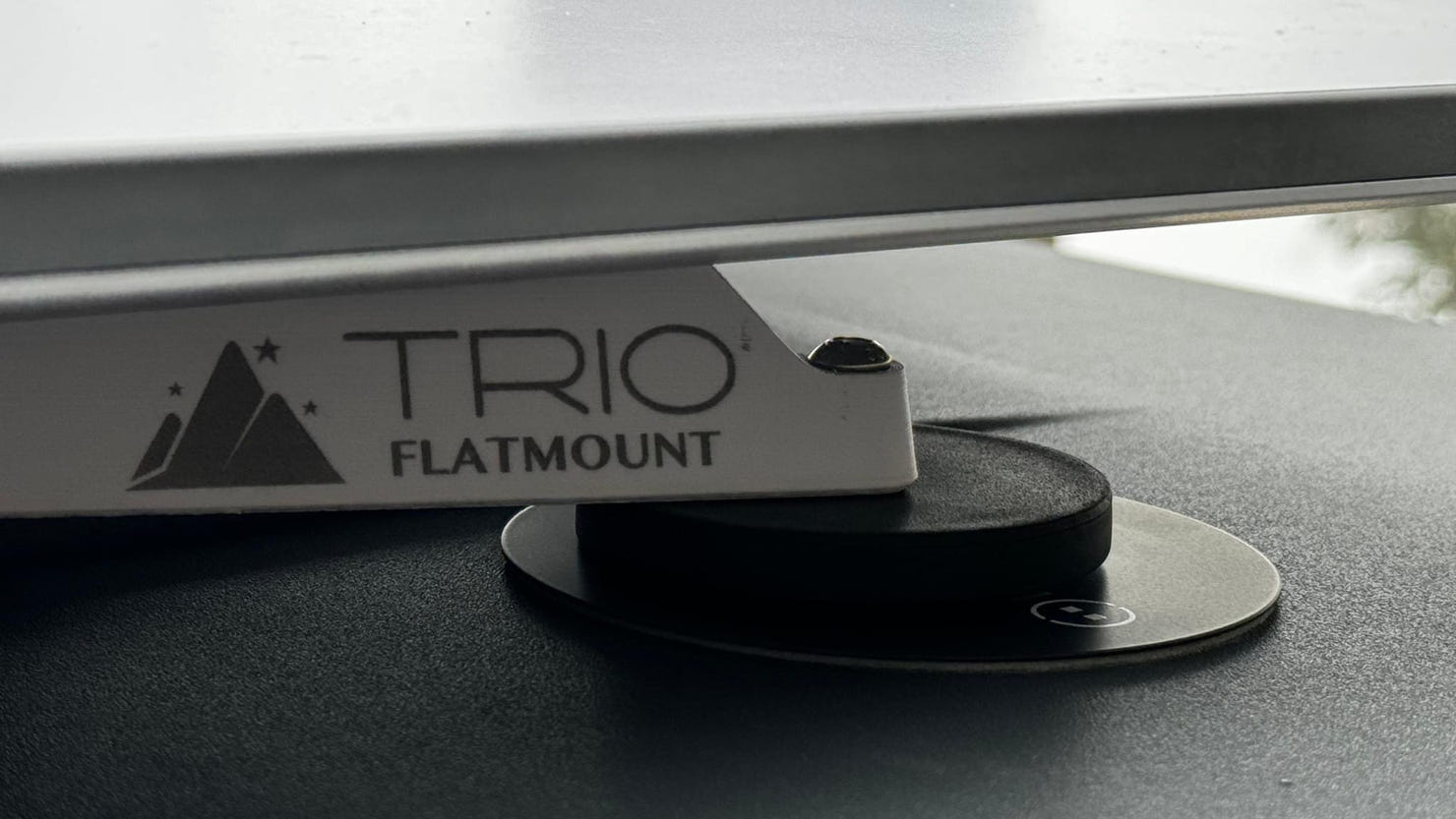

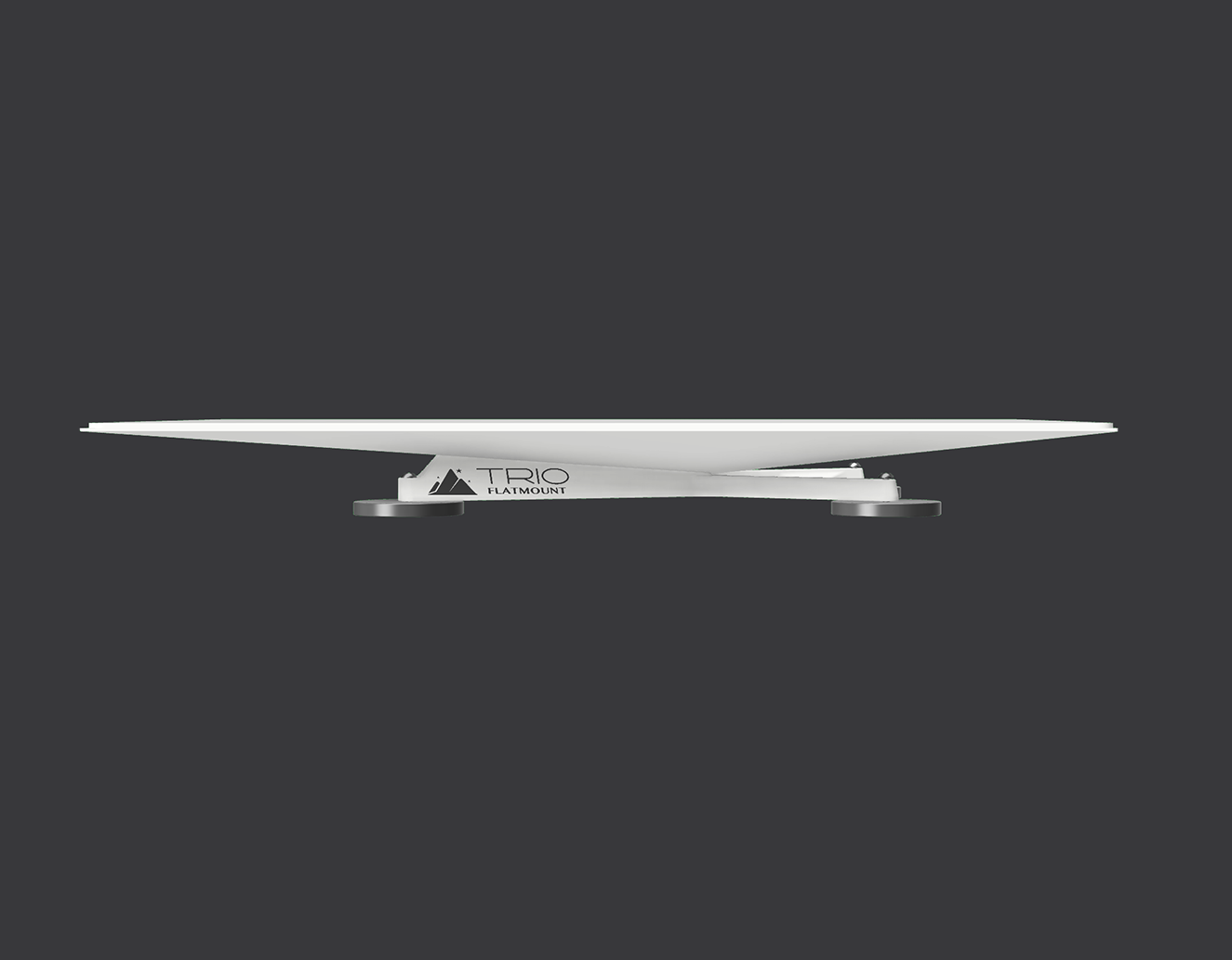

Height: 1.50” (1.65” with magnets)
Weight: ~6 lbs

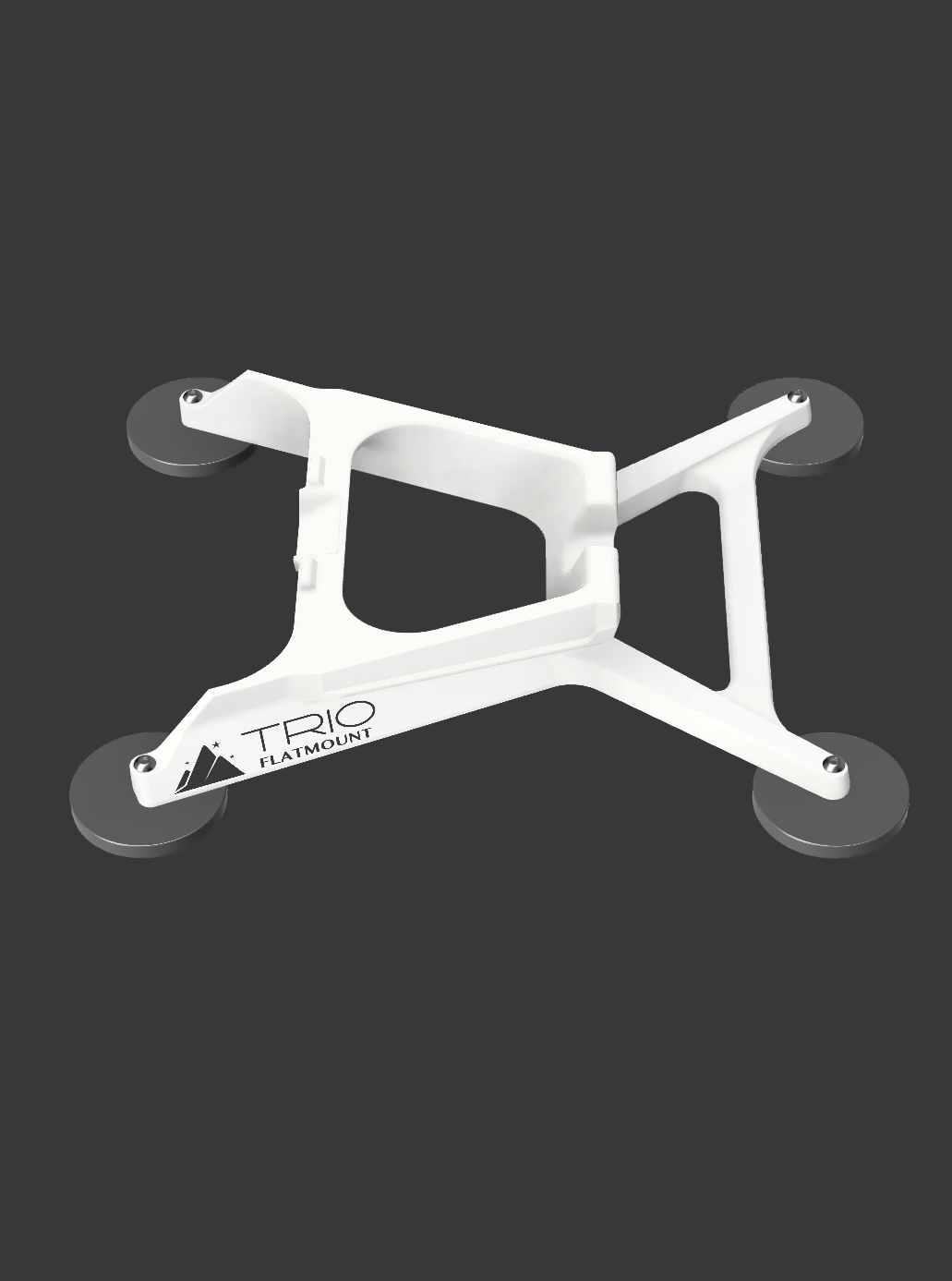

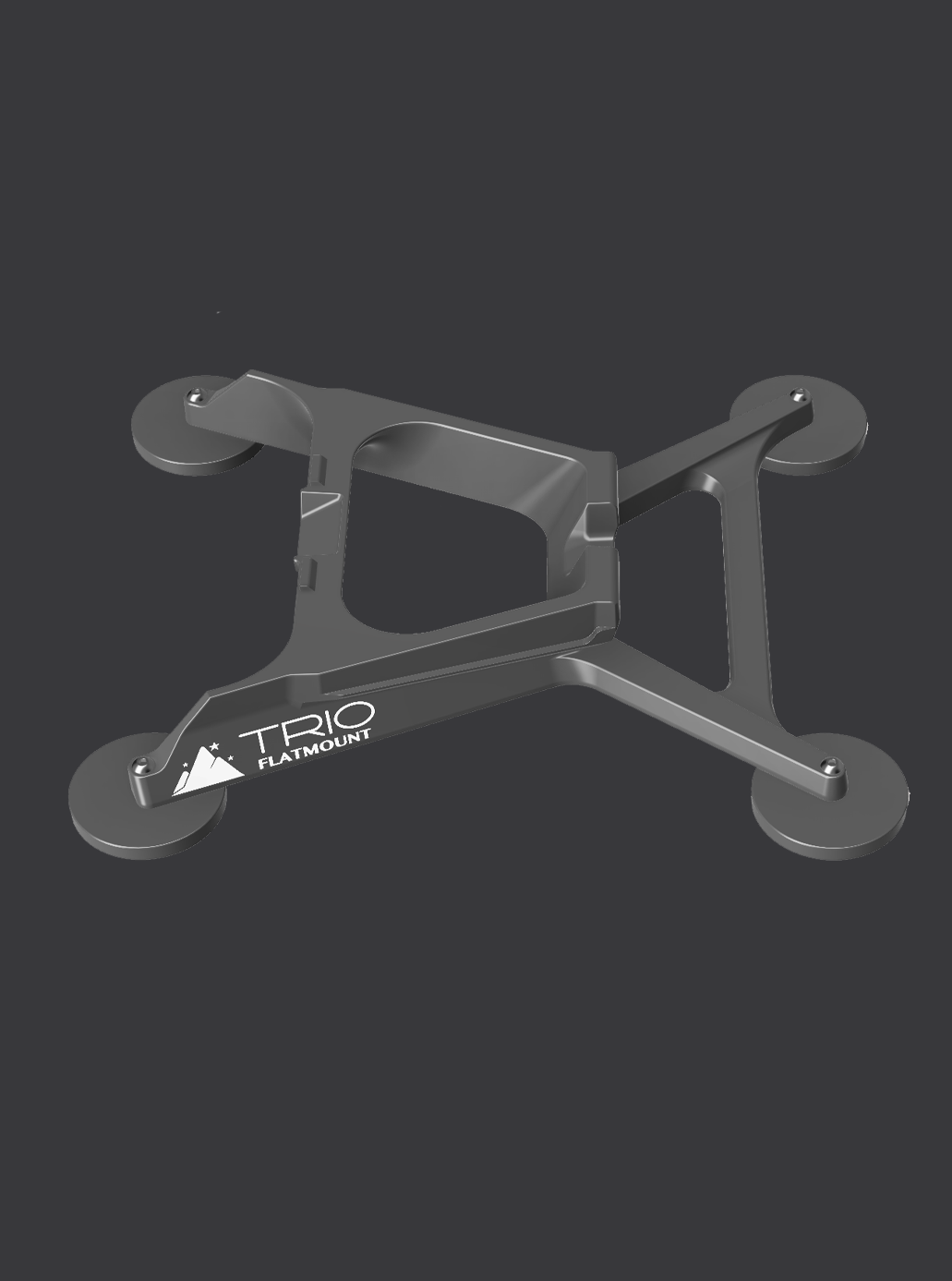

Mounting options: Rubber-Coated Magnets, VHB Landing Pads, Suction Cups, Through-Bolting Kits, or combination setups

Compatibility: Starlink Performance Gen 3

Operating temperature: -40°F to 150°F (-40°C to 65°C)

⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

See our warranty here: Warranty
