Gen 3 12V Power Supply
Description

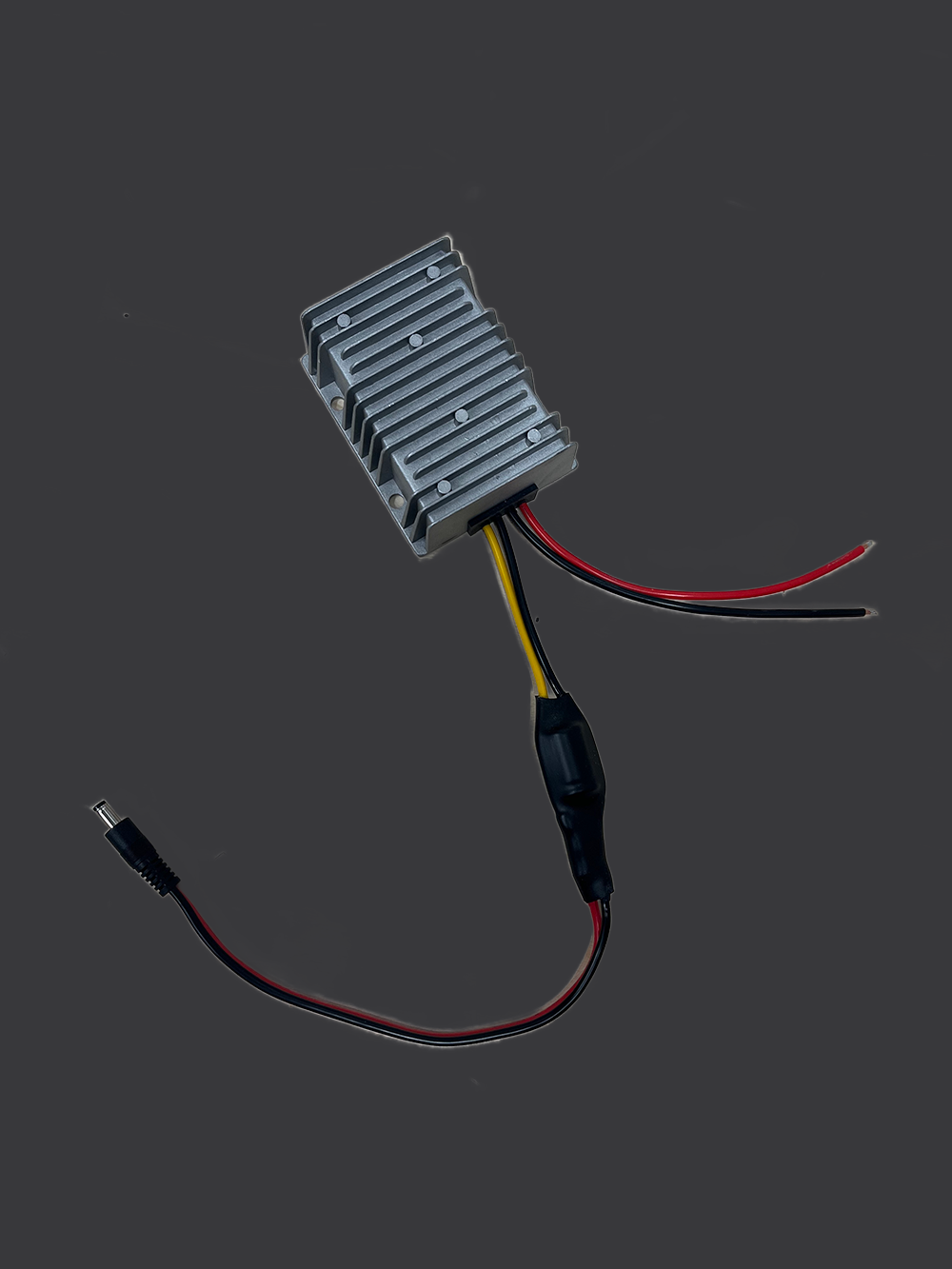

Our Gen 3 12V power supply plugs directly into the Gen 3 Starlink Router. This eliminates the wasted idle draw of powering it through a large inverter (30-50 watts waste for a 3000W inverter!).
Simply unplug the 110V Starlink power supply and plug in our 336W power supply and connect it to a 12V OR 24V power source (Input voltage range is 10-30V). Our converter boosts this to the 56V that the Gen 3 router and dish need.
After testing numerous power supplies we finally had one manufactured overseas. To eliminate any concern about ripple voltage (and subsequent drop outs and/or reduced speeds), we install a capacitor as well as the appropriate barrel connector that works seamlessly with the Starlink Gen 3 router.
Power Consumption tested over 1 hour with constant upload/download internet: 63 Wh (4.5A at 13.8V).
** NOTE: Using snow melt function draws an additional 120W and cannot be used with cigarette lighter plug as most vehicles have a 10A limit.
** If wanting to extend the barrel connector length, we recommend adding a barrel connector extension.
Please select the appropriate connector for your application from the drop down: bare wire leads, ring terminals, or cigarette lighter plug (must be 15A or greater cig plug).
Installation
See installation instructions here : Installation instractions
Specifications
Assembled Dimensions:
Length: 25.65”
Width: 17.37”
Height: 1.50” (1.65” with magnets)
Weight: ~6 lbs
Mounting options: Rubber-Coated Magnets, VHB Landing Pads, Suction Cups, Through-Bolting Kits, or combination setups
Compatibility: Starlink Performance Gen 3
Operating temperature: -40°F to 150°F (-40°C to 65°C)
Important Information
⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.
⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.
Returns and Warranty
See our warranty here: Warranty
